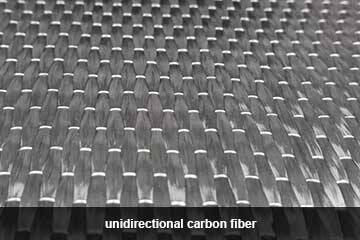

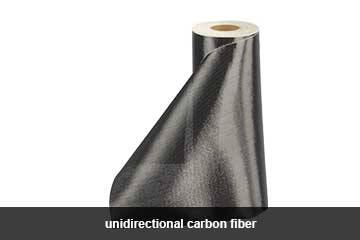

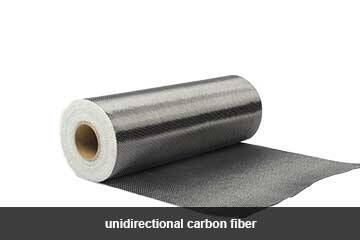

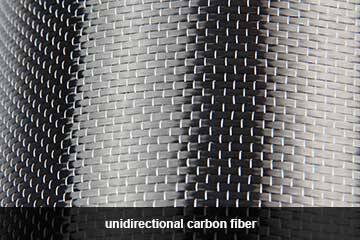

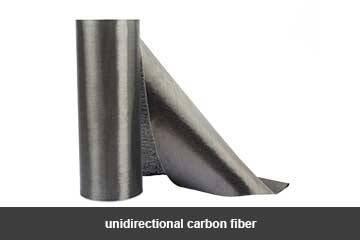

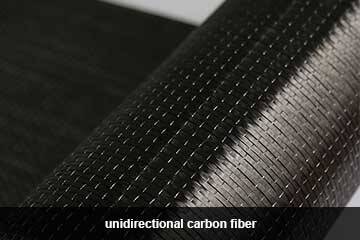

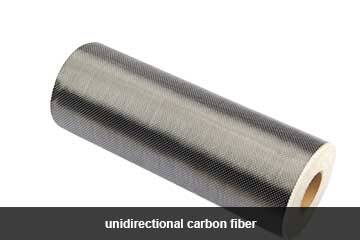

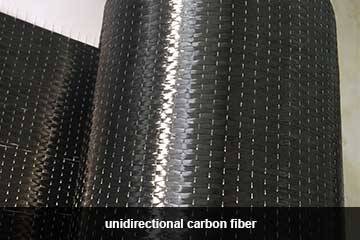

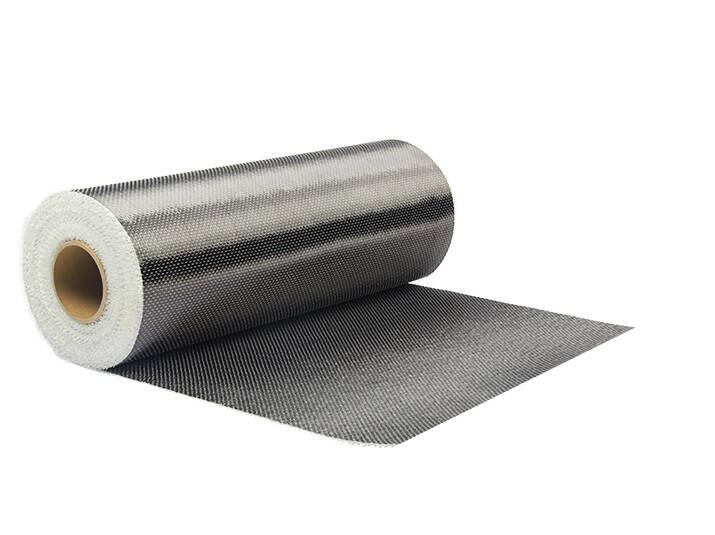

unidirectional carbon fiber fabric

Advantages of Horse CFRP Fabric Strengthening

• Easy installation
• Corrosion resistance
• Short construction period
• No maintenance required
• Light weight, no influence to original structure
• Low cost, cost effective compared with other methods

Advantages of Horse CFRP Fabric Strengthening

• Easy installation
• Corrosion resistance
• Short construction period
• No maintenance required
• Light weight, no influence to original structure
• Low cost, cost effective compared with other methods

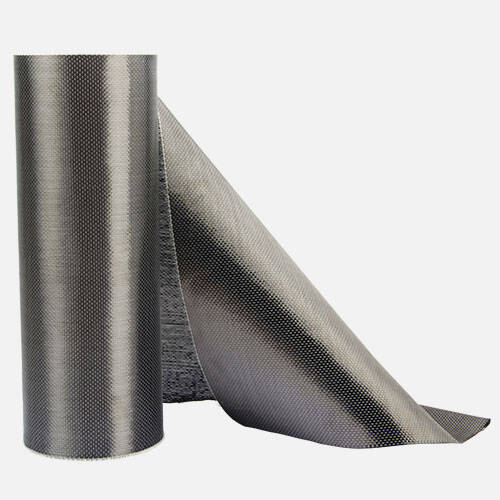

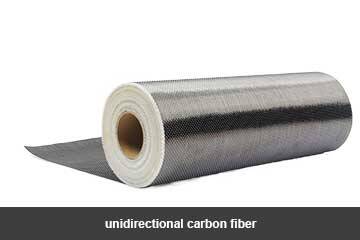

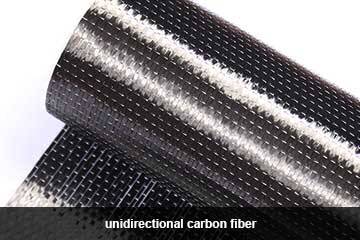

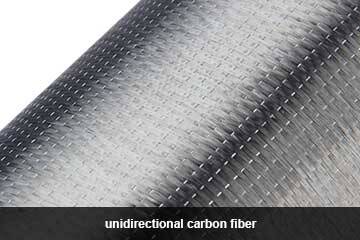

unidirectional carbon fiber fabric
carbon fiber fabric manufacturer

Key Features of Unidirectional Carbon Fiber Fabric

• Flexible
• High strength
• High modulus
• Easy to install
• Long shelf life
• Light self weight
• High toughness
• Anti high temperature
• Environmental-friendly
• Unidirectional carbon fiber fabric used for shear strengthening, confinement strengthening, flexural strengthening

carbon fiber fabric manufacturer

Key Features of Unidirectional Carbon Fiber Fabric

• Flexible
• High strength
• High modulus
• Easy to install
• Long shelf life
• Light self weight
• High toughness
• Anti high temperature
• Environmental-friendly
• Unidirectional carbon fiber fabric used for shear strengthening, confinement strengthening, flexural strengthening

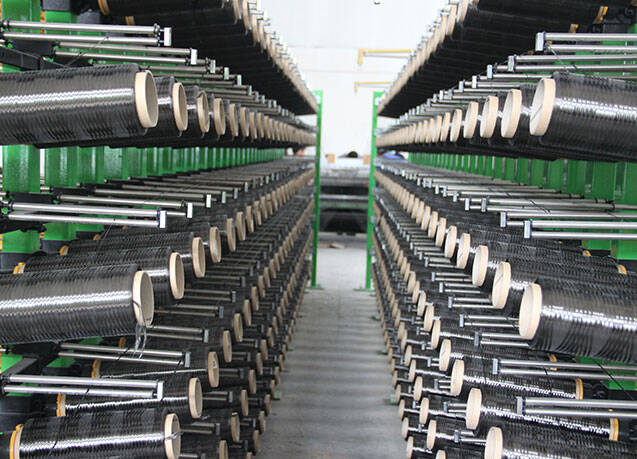

Manufacturer of Unidirectional Carbon Fiber Fabric

• The largest and most professional carbon fiber fabric manufacturer in China

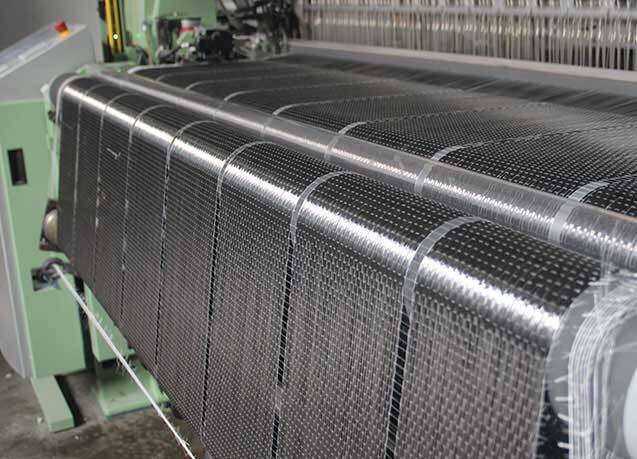

• 5 carbon fiber fabric production lines, 10,000 square meters per day
• The daily storage of carbon fiber is 100,000 square meters, and the daily storage of adhesive is 50 tons

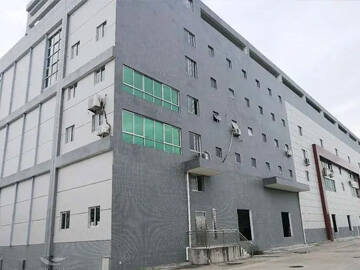

• The factory covers an area of 5,000 square meters
• Equipped with an independent laboratory and 3 technologies to test data at any time

Manufacturer of Unidirectional Carbon Fiber Fabric

• The largest and most professional carbon fiber fabric manufacturer in China
• 5 carbon fiber fabric production lines, 10,000 square meters per day
• The daily storage of carbon fiber is 100,000 square meters, and the daily storage of adhesive is 50 tons
• The factory covers an area of 5,000 square meters
• Equipped with an independent laboratory and 3 technologies to test data at any time

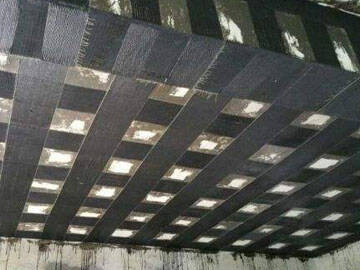

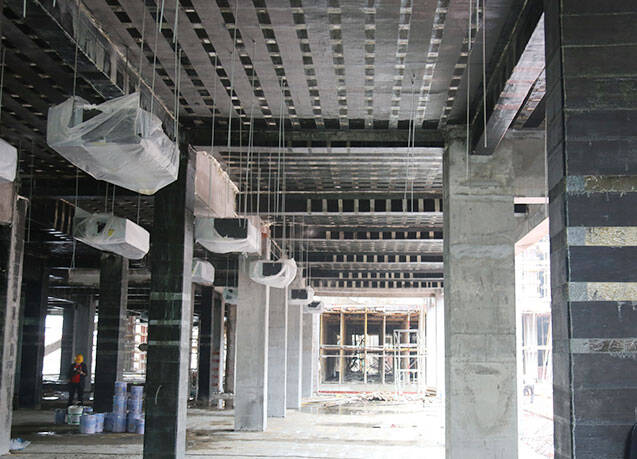

carbon fiber fabric structural strengthening

Application Range of CFRP Strengthening

• Load increases
• Seismic reinforcement
• Improve structural state
• Damage of structural parts
• Change the structural function
• Remit mistakes in design and construction

carbon fiber fabric structural strengthening

Application Range of CFRP Strengthening

• Load increases
• Seismic reinforcement
• Improve structural state
• Damage of structural parts
• Change the structural function
• Remit mistakes in design and construction

carbon fiber reinforced polymer concrete repair

Base Substrates of CFRP Strengthening

• Concrete substrate
• Steel substrate

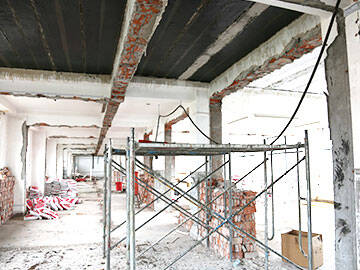

• Masonry substrate
• Timber substrate

Base Substrates of CFRP Strengthening

• Concrete substrate
• Steel substrate
• Masonry substrate
• Timber substrate

carbon fiber reinforced polymer concrete repair

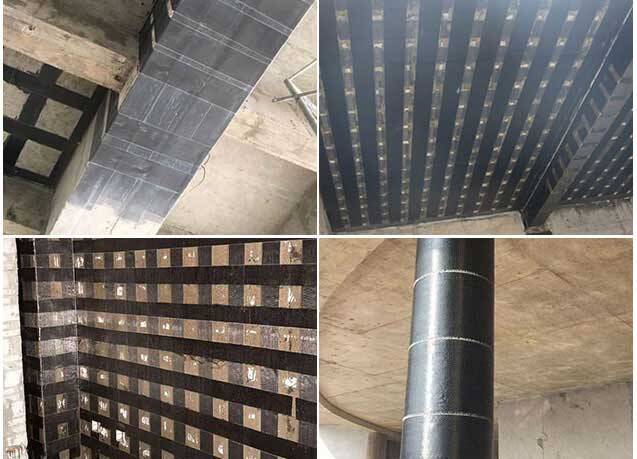

Structural Elements of CFRP Strengthening

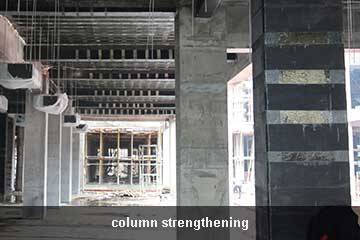

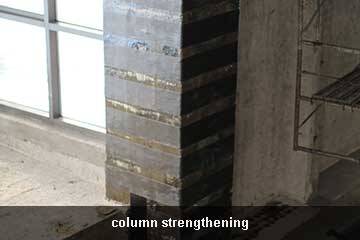

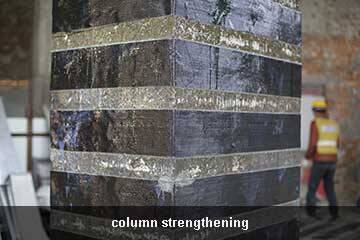

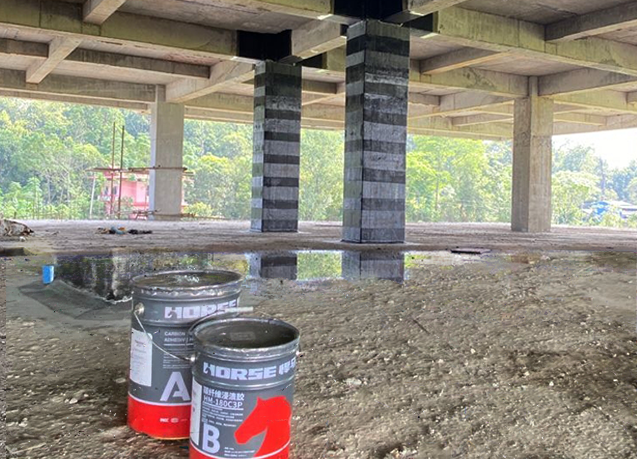

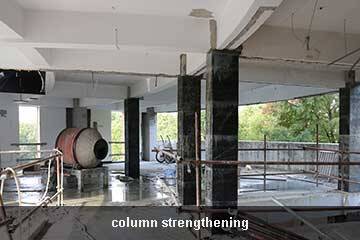

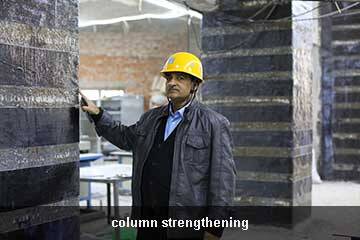

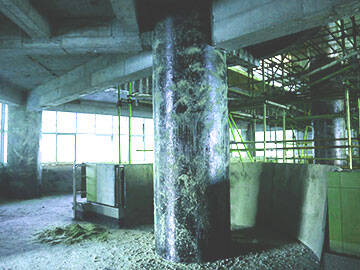

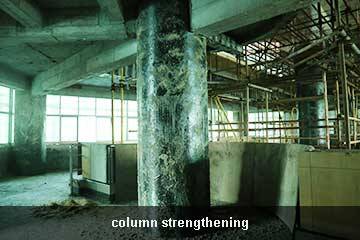

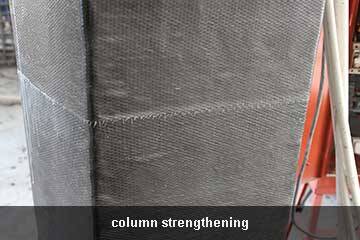

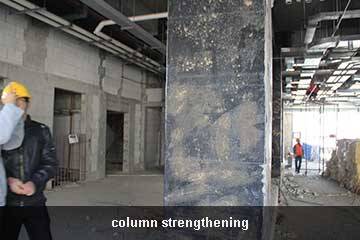

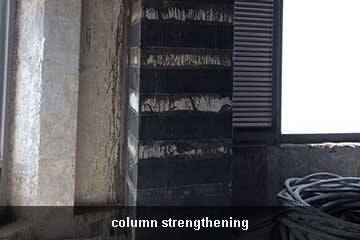

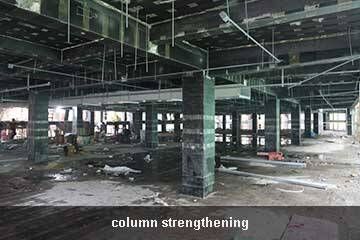

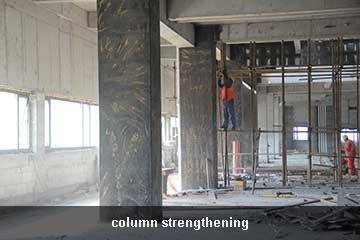

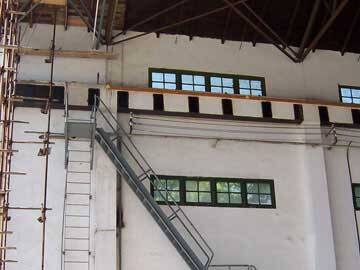

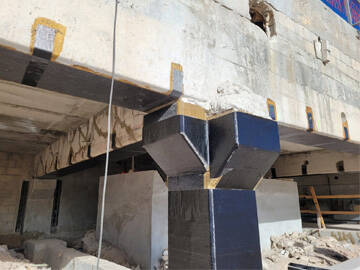

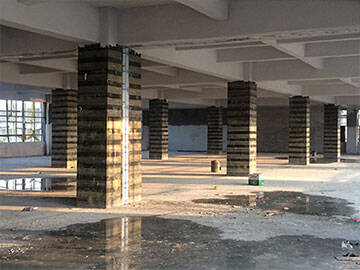

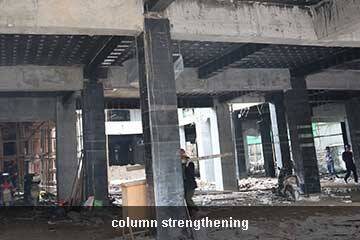

• Columns strengthening

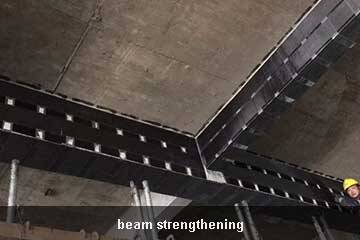

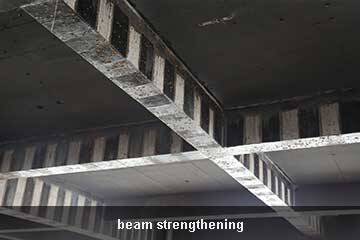

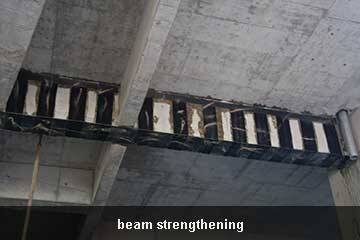

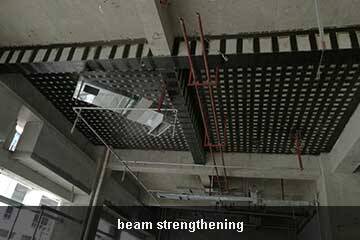

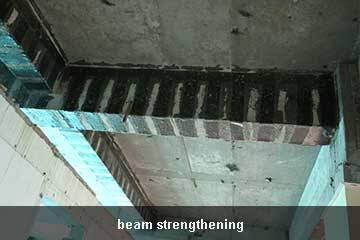

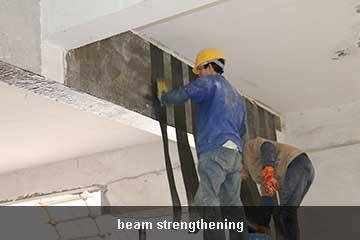

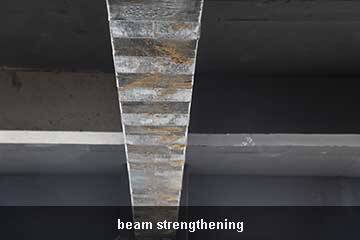

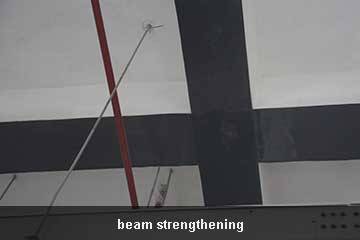

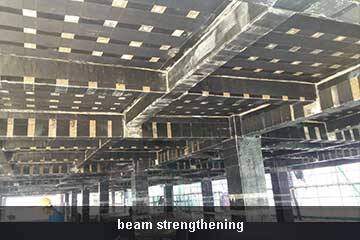

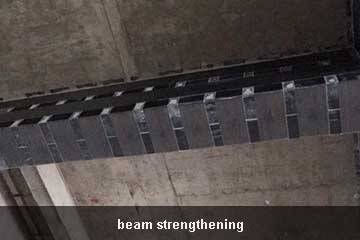

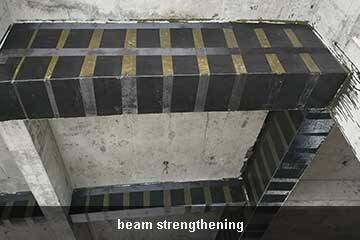

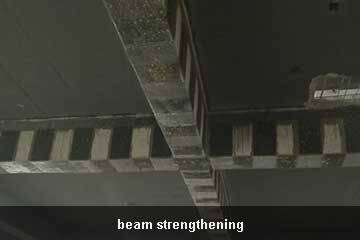

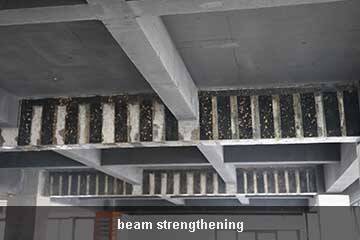

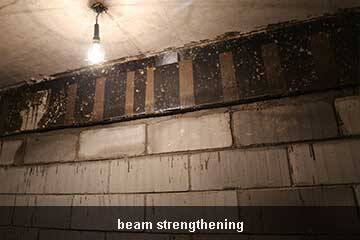

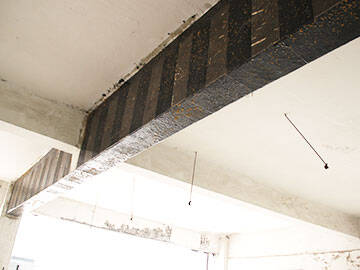

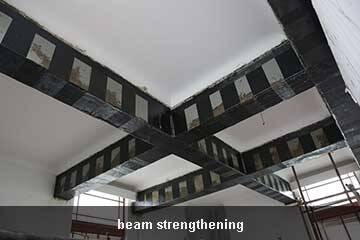

• Beams strengthening

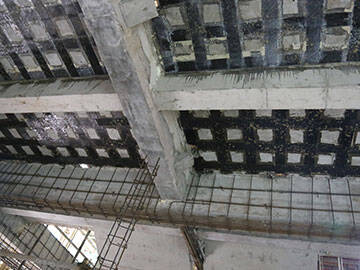

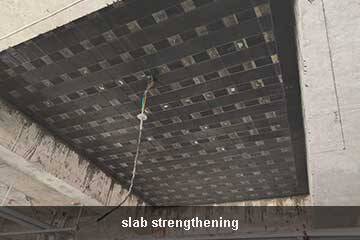

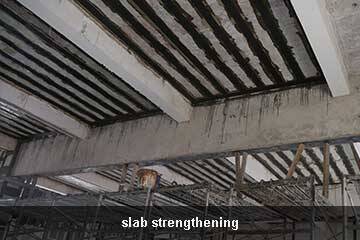

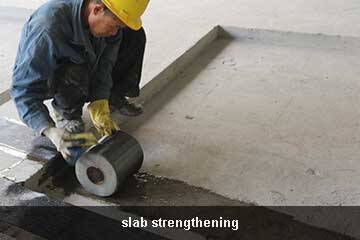

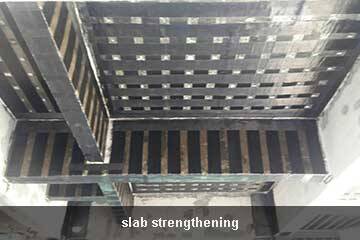

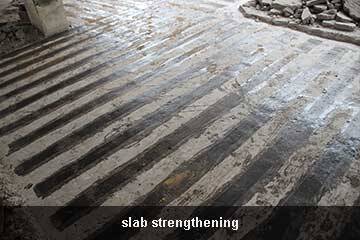

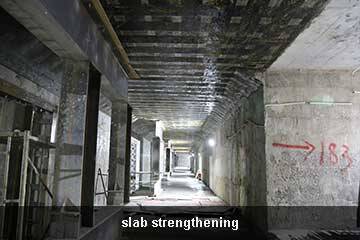

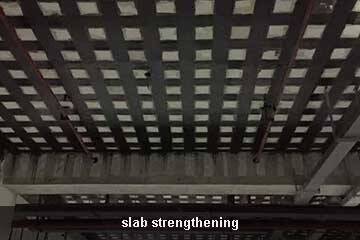

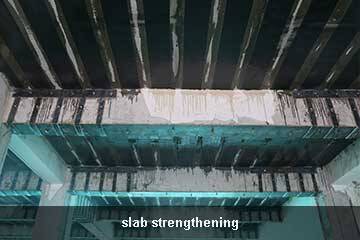

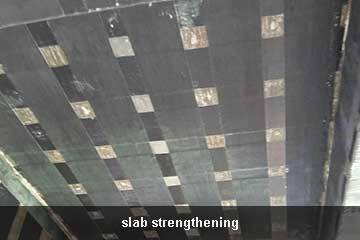

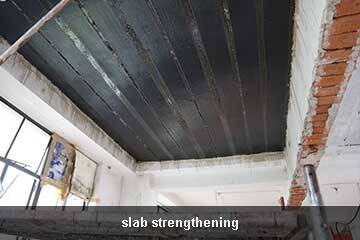

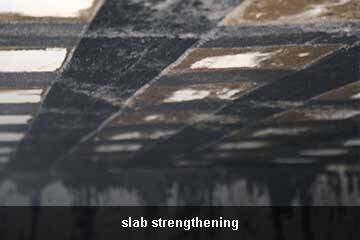

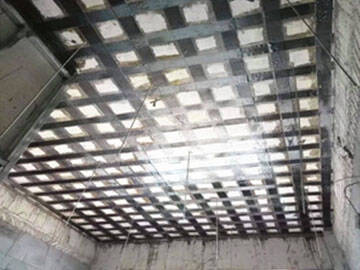

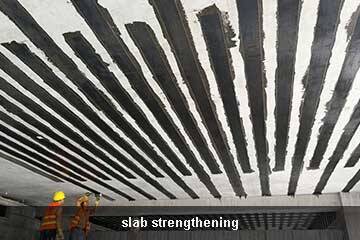

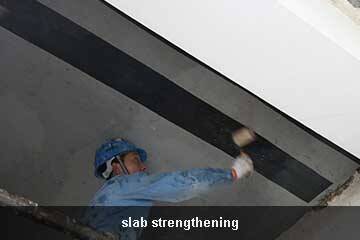

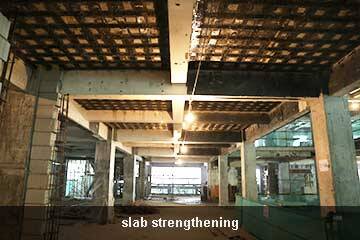

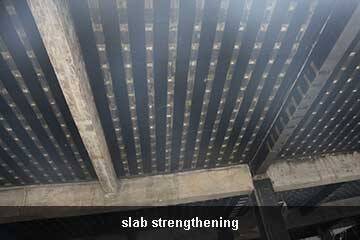

• Slabs strengthening

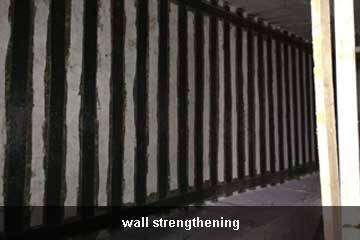

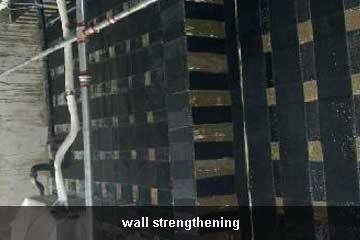

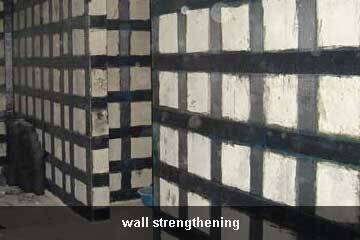

• Walls strengthening
• Pipes strengthening
• Pier caps strengthening

Structural Elements of CFRP Strengthening

• Columns strengthening
• Beams strengthening
• Slabs strengthening
• Walls strengthening
• Pipes strengthening
• Pier caps strengthening

carbon fiber fabric repair concrete

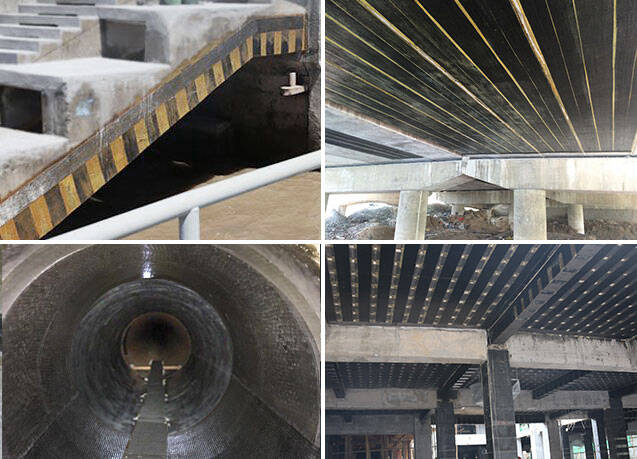

Construction Field of CFRP Strengthening

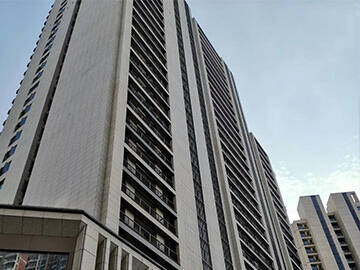

• Civil buildings

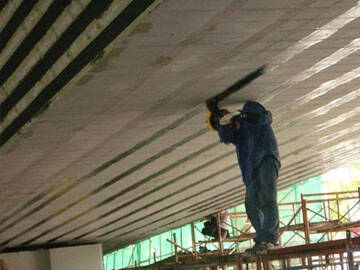

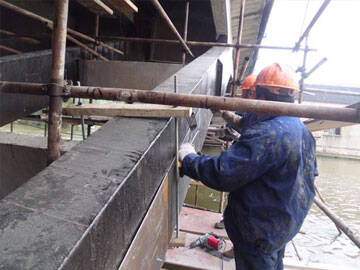

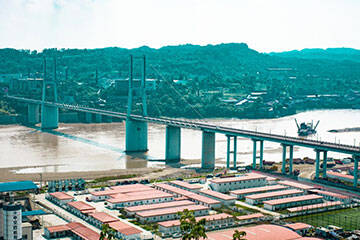

• Bridges

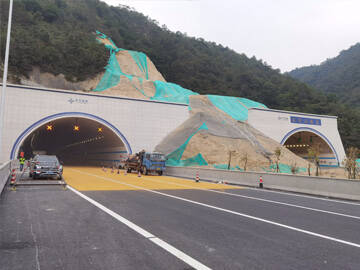

• Tunnels

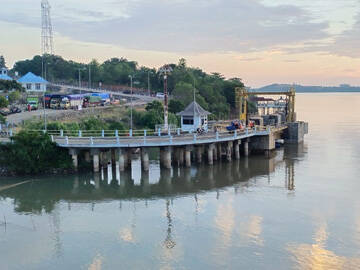

• Piers/wharfs
• Airports
• Highways, railways

Construction Field of CFRP Strengthening

• Civil buildings
• Bridges
• Tunnels
• Piers/wharfs
• Airports
• Highways, railways

carbon fiber fabric repair concrete
carbon fiber adhesive for strengthening

Best Matched Epoxy System

HM-180 Primer, for smearing of the underlayer of reinforced member's surface

HM-180CE Leveling adhesive, for repairing and leveling of reinforced substrate surface defects

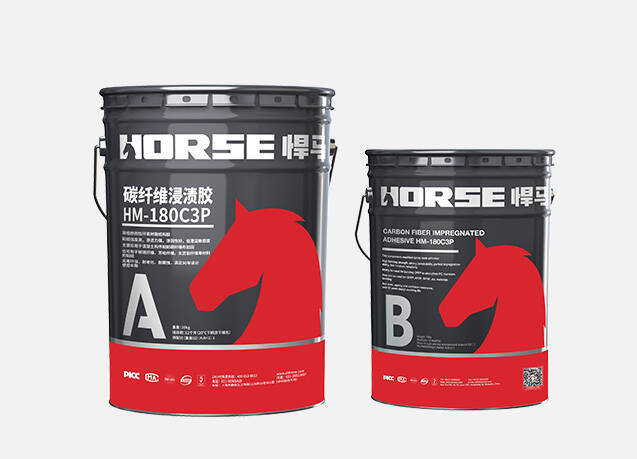

HM-180C3P Impregnated adhesive, for impregnation and pasting of reinforced component surface and Horse unidirectional carbon fiber fabric

carbon fiber adhesive for strengthening

Best Matched Epoxy System

HM-180 Primer, for smearing of the underlayer of reinforced member's surface

HM-180CE Leveling adhesive, for repairing and leveling of reinforced substrate surface defects

HM-180C3P Impregnated adhesive, for impregnation and pasting of reinforced component surface and Horse unidirectional carbon fiber fabric

carbon fiber fabric structural repair

How to Use Carbon Fiber Fabric for Structural Strengthening

• Surface treatment
• Applying HM-180 primer
• Concrete repair by HM-180CE leveling adhesive
• Applying HM-180C3P carbon fiber adhesive

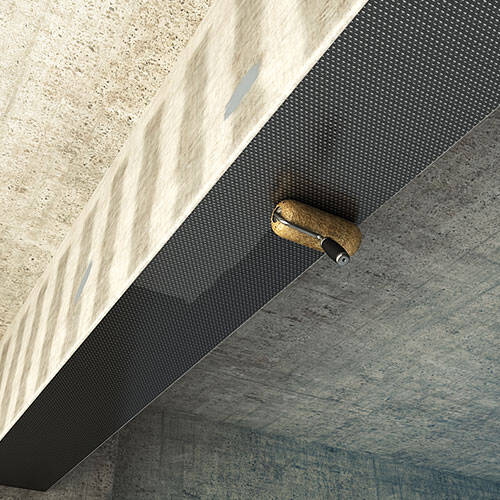

• Externally bonded Horse unidirectional carbon fiber fabric
• Applying HM-180C3P carbon fiber adhesive again
• Curing and protecting

How to Use Carbon Fiber Fabric for Structural Strengthening

• Surface treatment
• Applying HM-180 primer
• Concrete repair by HM-180CE leveling adhesive
• Applying HM-180C3P carbon fiber adhesive
• Externally bonded Horse unidirectional carbon fiber fabric
• Applying HM-180C3P carbon fiber adhesive again
• Curing and protecting

carbon fiber fabric structural repair







Horse Unidirectional Carbon Fiber Fabric's Data Sheet

HM-20 Carbon Fiber Fabric TDS.pdf

HM-43 Carbon Fiber Fabric TDS.pdf

HM-30 Carbon Fiber Fabric TDS.pdf

HM-60 Carbon Fiber Fabric TDS.pdf


Horse Construction FRP Systems

Horse FRP system.pdf


Carbon Fiber Typical Data


Storage Condition
Store dry at 40°-95° F(4° -35°)
Shelf Life50 years
ColorBlack
Primary Fiber Direction0°(unidirectional carbon fiber fabric)

Arear Weight

HM-20 unidirectional carbon fiber fabric200g/㎡ (5.84 oz./sq.yd.)
HM-23 unidirectional carbon fiber fabric230g/㎡ (6.72 oz./sq.yd.)
HM-30 unidirectional carbon fiber fabric300g/㎡ (8.76 oz./sq.yd.)
HM-45 unidirectional carbon fiber fabric450g/㎡ (13.14 oz./sq.yd.)
HM-53 unidirectional carbon fiber fabric530g/㎡ (15.48 oz./sq.yd.)
HM-60 unidirectional carbon fiber fabric600g/㎡ (17.52 oz./sq.yd.)


Carbon Fiber Typical Fiber Properties


Dry Fiber Typical Properties
Standrad Value of Tensile Strength4900MPa
Tensile Elastic Modulus234500MPa
Elongation1.7%
Laminate Fiber Typical Properties
Standrad Value of Tensile Strength3800MPa
Tensile Elastic Modulus234500MPa
Elongation1.7%
With Concrete
Concrete Damaged: ≥2.5MPa
Densiy1.8g/cc(0.065lbs.in3
Norminal Fiber ThicknessHM-20 unidirectional carbon fiber fabric0.111mm(0.0044in.)
HM-23 unidirectional carbon fiber fabric0.128mm(0.0050in.)
HM-30 unidirectional carbon fiber fabric0.167mm(0.0065in.)
HM-45 unidirectional carbon fiber fabric0.251mm(0.0097in.)
HM-53unidirectional  carbon fiber fabric0.295mm(0.0114in.)
HM-60 unidirectional carbon fiber fabric0.333mm(0.0130in.)

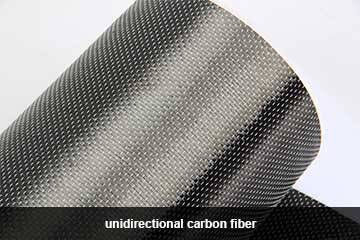

Unidirectional black weaves carbon fiber fabric( bidirectional carbon fiber cloth can be customized by requirements).


Typic width are 10cm, 15cm, 20cm, 25cm, 30cm, 50cm, 60cm.


other width can be customized by requirements.


Shanghai Horse Construction carbon fiber fabric roll length should be 100m/roll.



Horse carbon fiber reinforced polymer(CFRP) fabric for structural strengthening of column, beam, slab, wall


Carbon Fiber Strengthening Video(click it)




>>The treatment of concrete surface
The cosmetic layer, oil, dirt etc. Of concrete surface should be chiseled off and then rubbed off 1 ~2 mm thick surface layer with the

angle grinder, concrete components should be handled by chamfering on the corner, dust was blew out with compressed air after the

completion Of polishing, and finally the surface was wiped by cotton cloth dipped in acetone, and kept dry for use. If the concrete

needed to strengthen existed cracks, first choose HM-120M perfusion adhesive or HM-120L pouring crack adhesive to perfuse according
to the size of crack, and then strengthen.


>>Primer construction
When construction, two components of HM-180 primer were weighed according to the stipulated proportion of preparing glue, and

dumped into a clean container and stirred to uniformity (when mixing, best mix along the same direction to avoid the air from forming

air bubbles.) Brush or roller brush was used to evenly brush on the concrete surface, after the glue surface layer dried, it should be

brushed several times depending on the particular circumstances, but the coating thickness did not exceed 0.4 mm, and it should
not be missed out to brush, or have flowing or bubbles, waiting for glue curing (curing time was depended on the site temperature,

it was appropriate when finger felt dry, generally not less than 2 hours), then the next process was proceeded. The glue prepared

every time should be used up one time during the applicable period of the glue.




>>Leveling construction
The pores and defects on concrete surface were filled by HM-180CE leveling adhesive.When depression area was existed, the prepared leveling

adhesive was used to repair and fill through scraper embedding and scraping, the position emerging altitude difference such as the

joint of templates should be filled by leveling adhesive, which tried to minimize the height difference. The treatment of corner was that

it was repaired to smooth arc through leveling adhesive, its radius was not more than 20mm. After the leveling adhesive cured (curing
time was depended on the site temperature, it was appropriate when finger felt dry, generally not less than 2 hours), the next process

should be proceeded further.

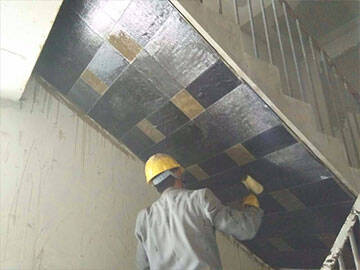

>>Paste of unidirectional carbon fiber fabric

HM-180C3P carbon fiber impregnated adhesive was smeared to the pasted area evenly,the corner site was more smeared appropriately. Paste after

hauling unidirectional carbon fiber fabric tight and alignment, use a plastic scraper or roller (a paint roller that the villus was removed outside) to roll

repeatedly along the same direction, until the glue compound exuded. And then smear impregnated adhesive to the outside surface

of the carbon fiber fabric evenly, and roll repeatedly that the impregnated adhesive can immerse the carbon fiber fabric in two ways,

if it is multi-paste, until your fingers touch dry, the next layer of paste can be beginner. If the carbon fiber fabric needs overlapping



>>Curing and conservation
Prevent rain or moisture 24 hours after the completion of construction, and pay attention to protection against a hard Object bumping

into the surface of the construction. When the average air temperature is 20 , 25 ℃ , the curing time is not less than 3 days; when

the average air temperature is 10 ℃, the curing time is not less than 7 days.
