• Technical data sheet:
• Technical data sheet:
• Easy installation
• Easy installation
• Raw material, 12k or 24k 4900~5500Mpa aviation raw fiber
• Raw material, 12k or 24k 4900~5500Mpa aviation raw fiber
• Flexible
• Flexible
• Load increases
• Load increases
• Concrete substrate
• Concrete substrate

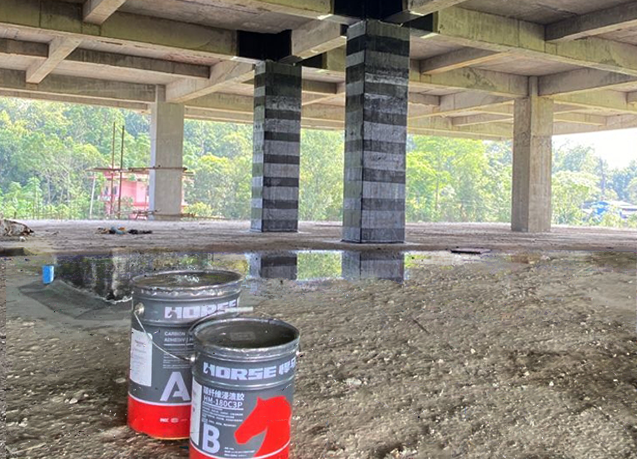

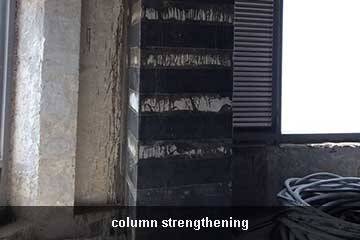

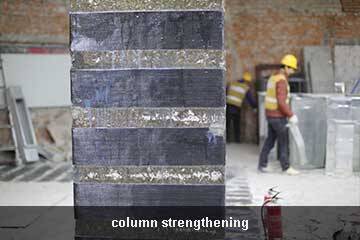

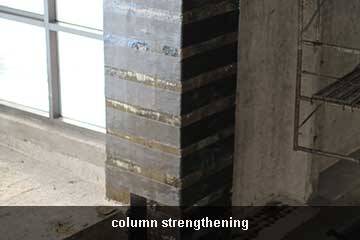

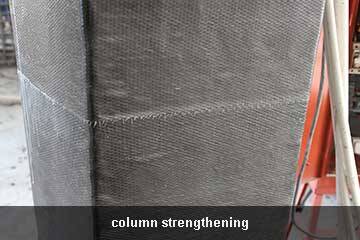

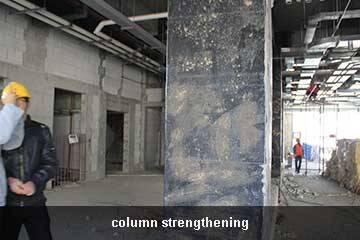

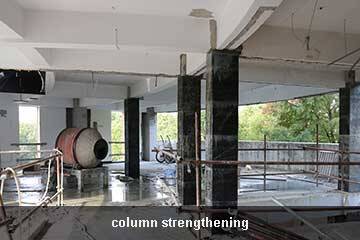

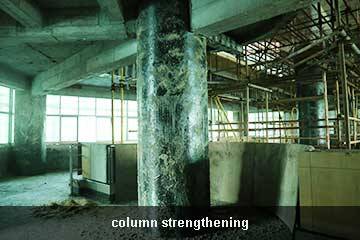

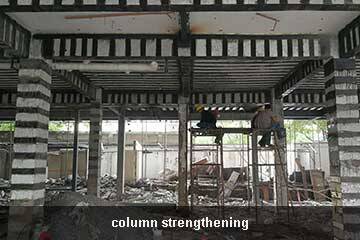

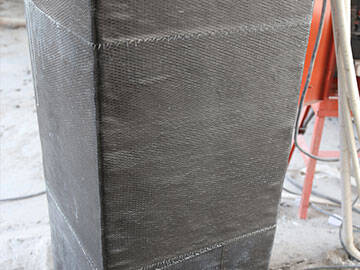

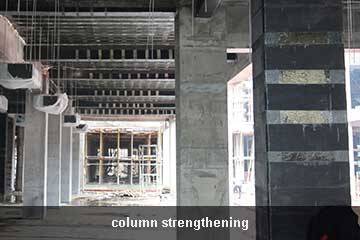

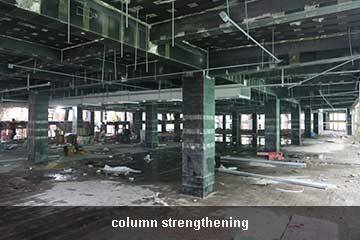

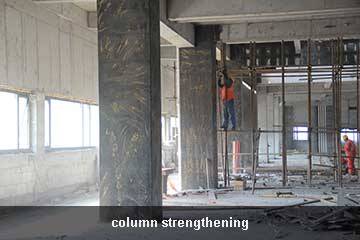

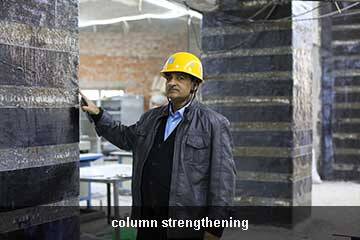

• Columns strengthening
• Columns strengthening

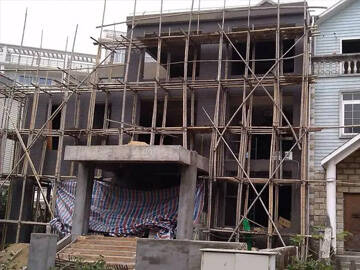

• Civil buildings
• Civil buildings
• HM-180 Primer, for smearing of the underlayer of reinforced member's surface
• HM-180 Primer, for smearing of the underlayer of reinforced member's surface
• Surface treatment
• Surface treatmentDocuments
HM-20 carbon fiber sheet ↓
HM-30 carbon fiber sheet ↓
HM-43 carbon fiber sheet ↓
HM-60 carbon fiber sheet ↓
• Videos:
Application video: Unidirectional carbon fiber for structural strengthening
Strength test video: Unidirectional carbon fiber
Factory video: Unidirectional carbon fiber manufacturer
• Product Catalog:
Horse FRP strengthening system ↓
• Design Software:
Horse FRP Strengthening Design Software ↓
Documents
HM-20 carbon fiber sheet ↓
HM-30 carbon fiber sheet ↓
HM-43 carbon fiber sheet ↓
HM-60 carbon fiber sheet ↓
• Videos:
Application video: Unidirectional carbon fiber for structural strengthening
Strength test video: Unidirectional carbon fiber
Factory video: Unidirectional carbon fiber manufacturer
• Product Catalog:
Horse FRP strengthening system ↓
• Design Software:
Horse FRP Strengthening Design Software ↓ Advantages of Horse CFRP Sheet Strengthening
• Corrosion resistance
• Short construction period
• No maintenance required
• Light weight, no influence to original structure
• Low cost, cost effective compared with other methods
Advantages of Horse CFRP Sheet Strengthening
• Corrosion resistance
• Short construction period
• No maintenance required
• Light weight, no influence to original structure
• Low cost, cost effective compared with other methods

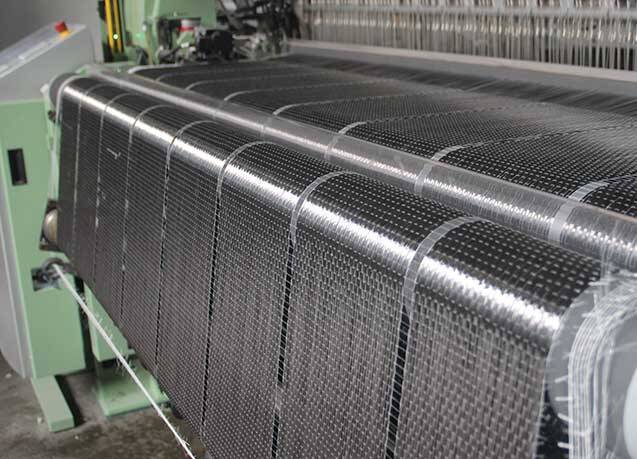

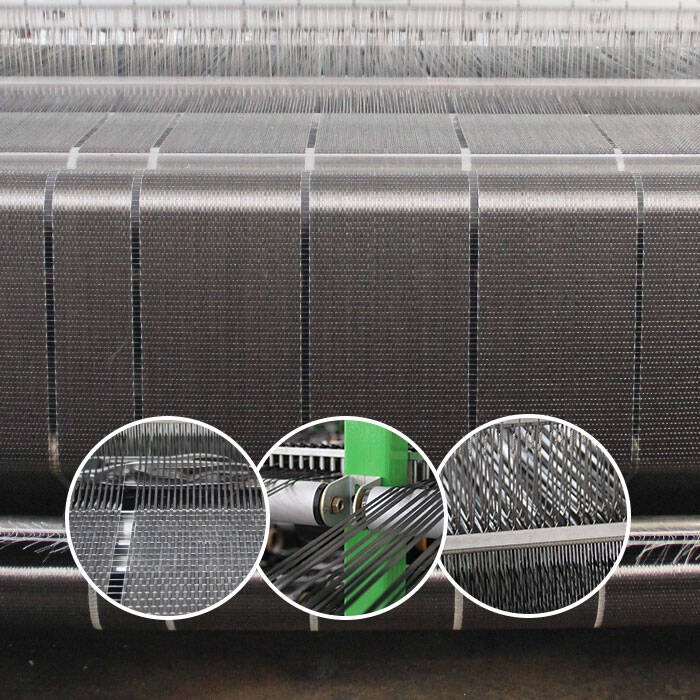

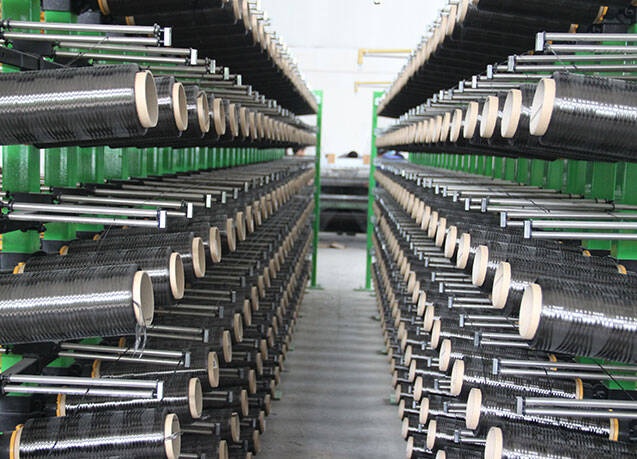

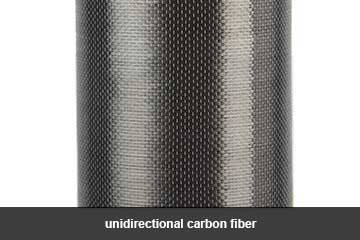

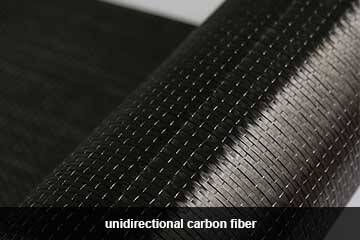

Manufacturer of Unidirectional Carbon Fiber Sheet
• Donier, 5 carbon fiber production lines, 10,000 square meters per day
• Stock, 100,000 square meters
• Factory, 5,000 square meters
• Laboratory, laboratory and 3 technologies
• Test and report, third party testing reports, ASTM-D3039
• Projects, 7000 projects from 76 countries
Manufacturer of Unidirectional Carbon Fiber Sheet
• Donier, 5 carbon fiber production lines, 10,000 square meters per day
• Stock, 100,000 square meters
• Factory, 5,000 square meters
• Laboratory, laboratory and 3 technologies
• Test and report, third party testing reports, ASTM-D3039
• Projects, 7000 projects from 76 countries Key Features of Unidirectional Carbon Fiber Sheet
• High strength
• High modulus
• Easy to install
• Long shelf life
• Light self weight
• High toughness
• Anti high temperature
• Environmental-friendly
• Unidirectional carbon fiber sheet sed for shear strengthening, confinement strengthening, flexural strengthening
Key Features of Unidirectional Carbon Fiber Sheet
• High strength
• High modulus
• Easy to install
• Long shelf life
• Light self weight
• High toughness
• Anti high temperature
• Environmental-friendly
• Unidirectional carbon fiber sheet sed for shear strengthening, confinement strengthening, flexural strengthening
Application Range of Carbon Fiber Sheet Reinforcement
• Seismic reinforcement
• Improve structural state
• Damage of structural parts
• Change the structural function
• Remit mistakes in design and construction
Application Range of Carbon Fiber Sheet Reinforcement
• Seismic reinforcement
• Improve structural state
• Damage of structural parts
• Change the structural function
• Remit mistakes in design and construction Base Substrates of Carbon Fiber Sheet Strengthening
• Steel substrate
• Masonry substrate
• Timber substrate
Base Substrates of Carbon Fiber Sheet Strengthening
• Steel substrate
• Masonry substrate
• Timber substrate
Structural Elements of Carbon Fiber Sheet Strengthening

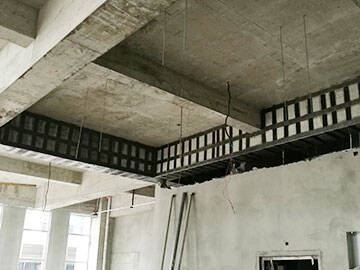

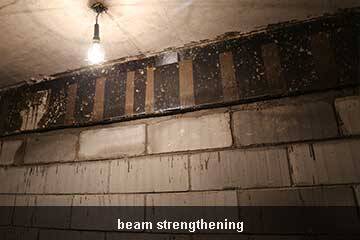

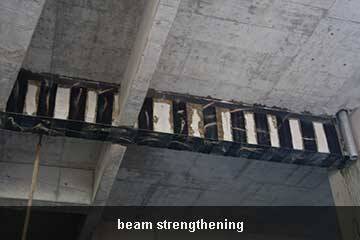

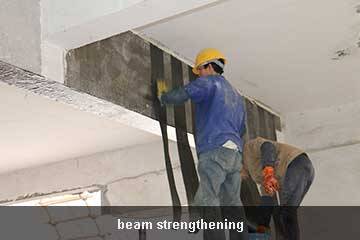

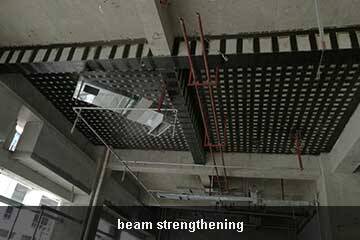

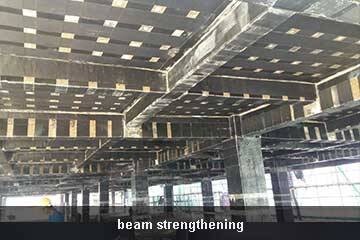

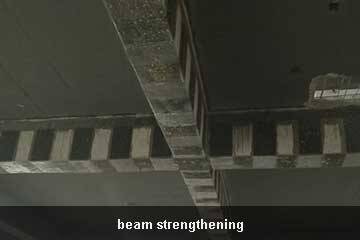

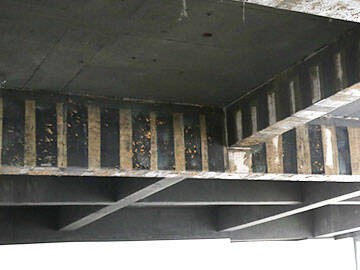

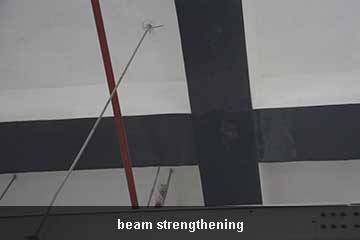

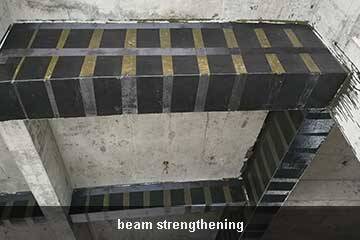

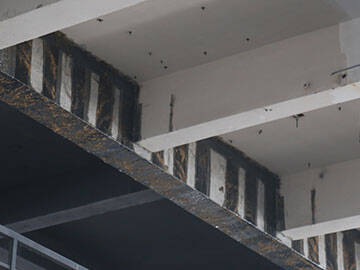

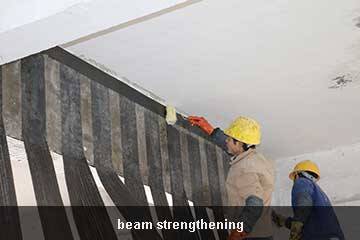

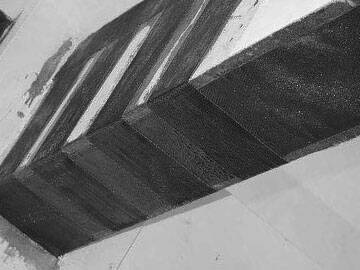

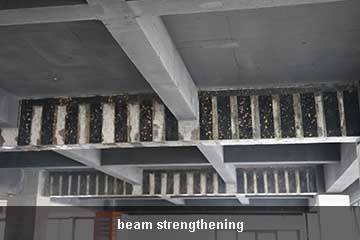

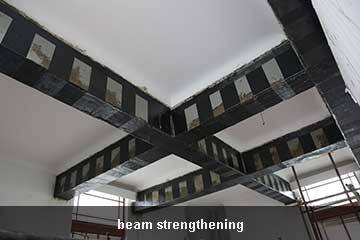

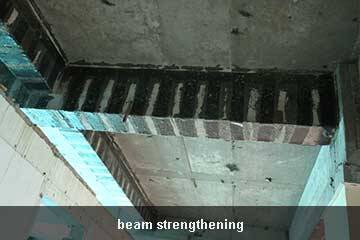

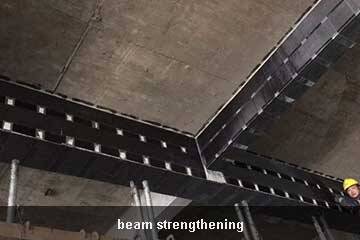

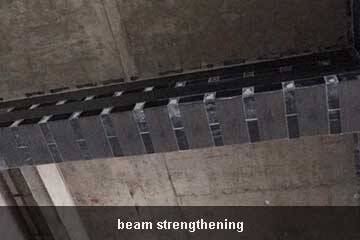

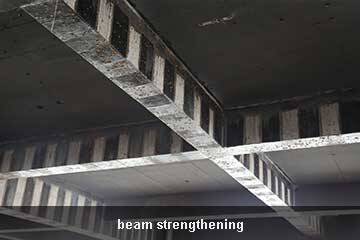

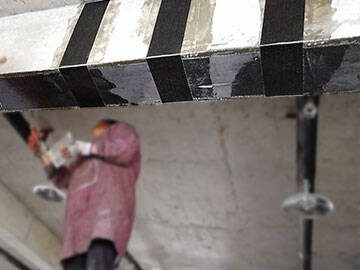

• Beams strengthening

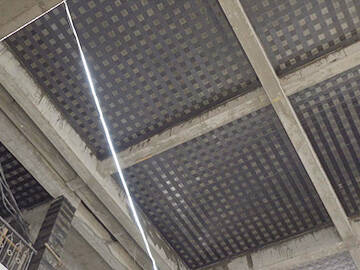

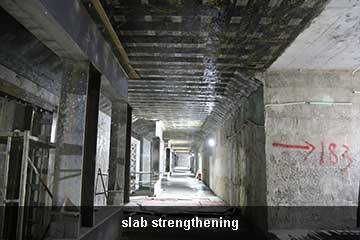

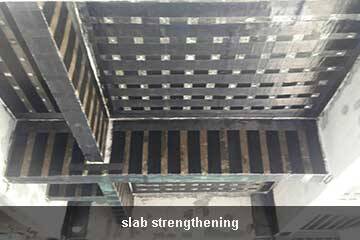

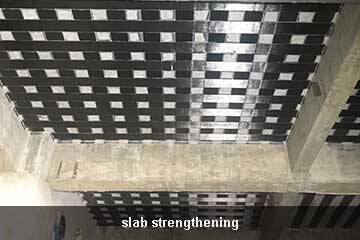

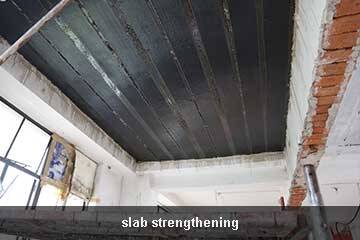

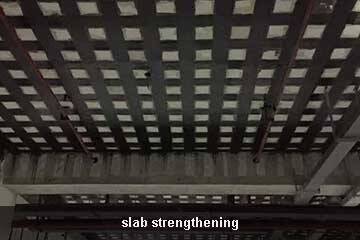

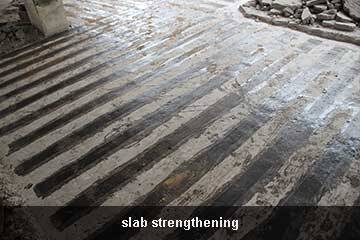

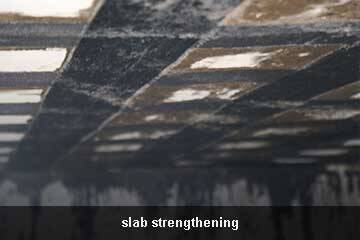

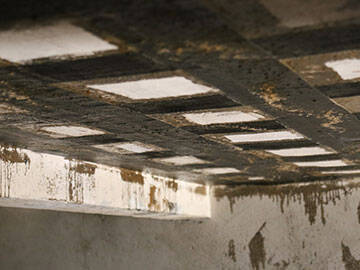

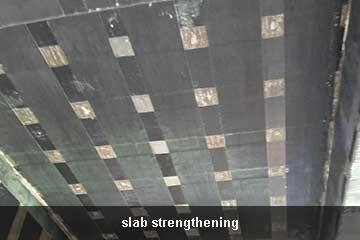

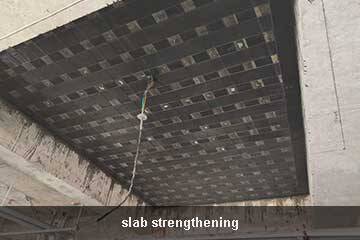

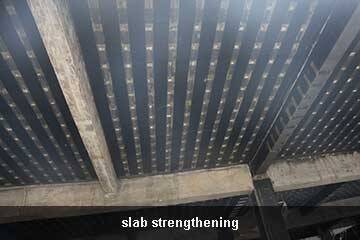

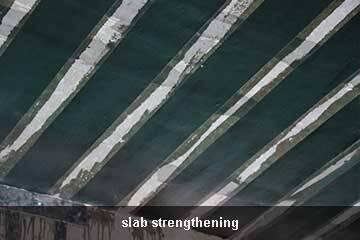

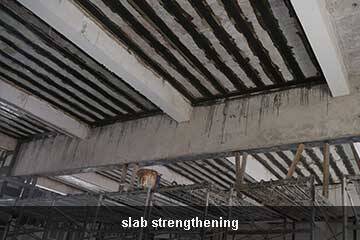

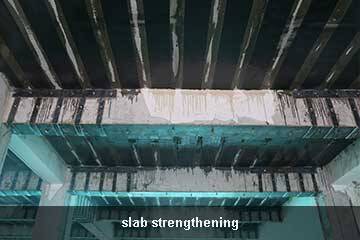

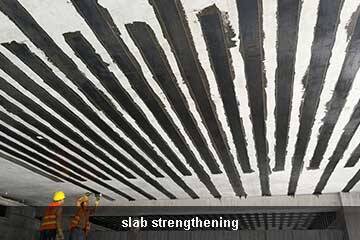

• Slabs strengthening

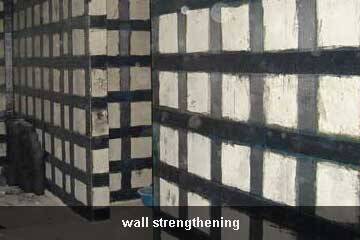

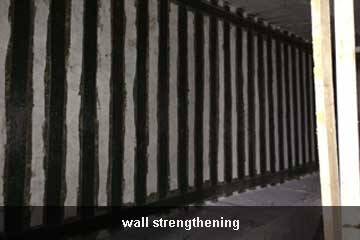

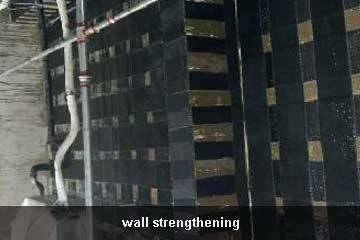

• Walls strengthening
• Pipes strengthening
• Pier caps strengthening
Structural Elements of Carbon Fiber Sheet Strengthening
• Beams strengthening
• Slabs strengthening
• Walls strengthening
• Pipes strengthening
• Pier caps strengthening Construction Field of Carbon Fiber Sheet Reinforcement

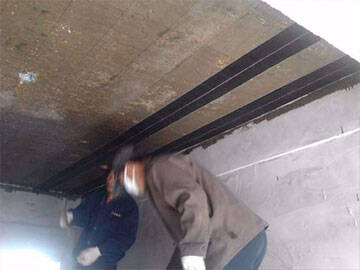

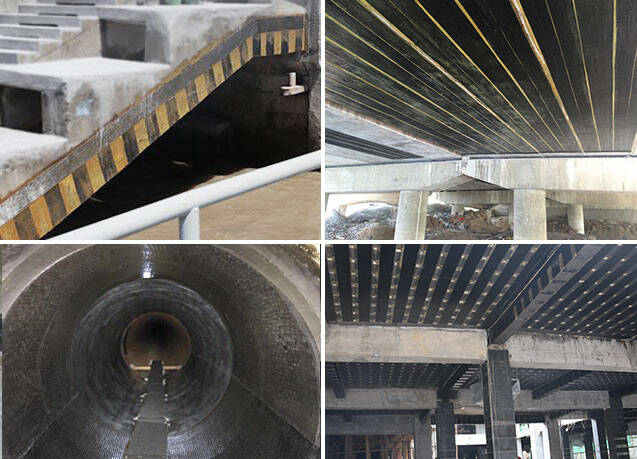

• Bridges
• Tunnels
• Piers/wharfs
• Airports
• Highways, railways
Construction Field of Carbon Fiber Sheet Reinforcement
• Bridges
• Tunnels
• Piers/wharfs
• Airports
• Highways, railways
Manufacturer Epoxy System
• HM-180CE Leveling adhesive, for repairing and leveling of reinforced substrate surface defects

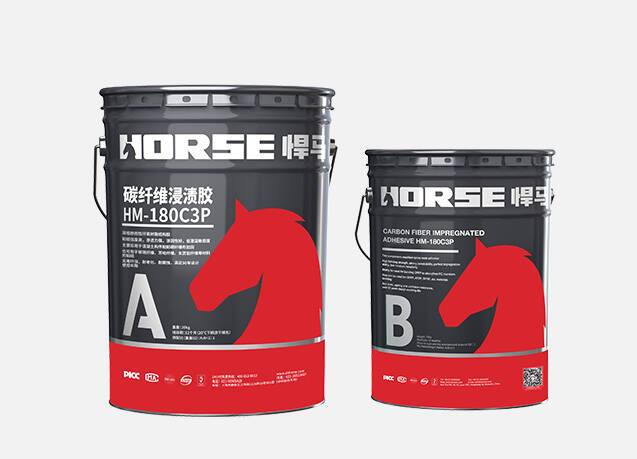

• HM-180C3P Impregnated adhesive, for impregnation and pasting of reinforced component surface and Horse unidirectional carbon fiber sheet
Manufacturer Epoxy System
• HM-180CE Leveling adhesive, for repairing and leveling of reinforced substrate surface defects
• HM-180C3P Impregnated adhesive, for impregnation and pasting of reinforced component surface and Horse unidirectional carbon fiber sheet How to Use Carbon Fiber Sheet For Structural Strengthening
• Applying HM-180 primer
• Concrete repair by HM-180CE leveling adhesive
• Applying HM-180C3P carbon fiber adhesive
• Externally bonded Horse unidirectional carbon fiber sheet
• Applying HM-180C3P carbon fiber adhesive again
• Curing and protecting
How to Use Carbon Fiber Sheet For Structural Strengthening
• Applying HM-180 primer
• Concrete repair by HM-180CE leveling adhesive
• Applying HM-180C3P carbon fiber adhesive
• Externally bonded Horse unidirectional carbon fiber sheet
• Applying HM-180C3P carbon fiber adhesive again
• Curing and protecting

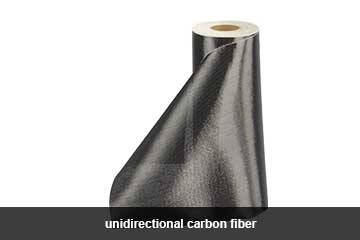

Horse Unidirectional Carbon Fiber Sheet's Data Sheet
HM-20 Carbon Fiber Fabric TDS.pdf
HM-30 Carbon Fiber Fabric TDS.pdf
HM-60 Carbon Fiber Fabric TDS.pdf
HM-43 Carbon Fiber Fabric TDS.pdf
Horse Construction FRP Systems
Carbon Fiber Typical Data
Storage Condition | Store dry at 40°-95° F(4° -35°) | |
Shelf Life | 50 years | |
Color | Black | |
Primary Fiber Direction | 0°(unidirectional) | |
Arear Weight | HM-20 unidirectional carbon fiber sheet | 200g/㎡ (5.84 oz./sq.yd.) |
HM-23 unidirectional carbon fiber sheet | 230g/㎡ (6.72 oz./sq.yd.) | |
HM-30 unidirectional carbon fiber sheet | 300g/㎡ (8.76 oz./sq.yd.) | |
HM-45 unidirectional carbon fiber sheet | 450g/㎡ (13.14 oz./sq.yd.) | |
HM-53 unidirectional carbon fiber sheet | 530g/㎡ (15.48 oz./sq.yd.) | |
HM-60 unidirectional carbon fiber sheet | 600g/㎡ (17.52 oz./sq.yd.) |
Carbon Fiber Typical Fiber Properties
Dry Fiber Typical Properties | |
Standrad Value of Tensile Strength | 4900MPa |
Tensile Elastic Modulus | 234500MPa |
Elongation | 1.7% |
Laminate Fiber Typical Properties | ||
Standrad Value of Tensile Strength | 3800MPa | |
Tensile Elastic Modulus | 234500MPa | |
Elongation | 1.7% | |
With Concrete | Concrete Damaged: ≥2.5MPa | |
Densiy | 1.8g/cc(0.065lbs.in3) | |
Norminal Fiber Thickness | HM-20 unidirectional carbon fiber sheet | 0.111mm(0.0044in.) |
HM-23 unidirectional carbon fiber sheet | 0.128mm(0.0050in.) | |
HM-30 unidirectional carbon fiber sheet | 0.167mm(0.0065in.) | |
HM-45 unidirectional carbon fiber sheet | 0.251mm(0.0097in.) | |
HM-53 unidirectional carbon fiber sheet | 0.295mm(0.0114in.) | |
HM-60 unidirectional carbon fiber sheet | 0.333mm(0.0130in.) |

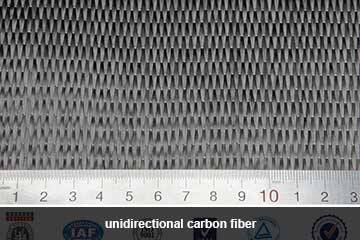

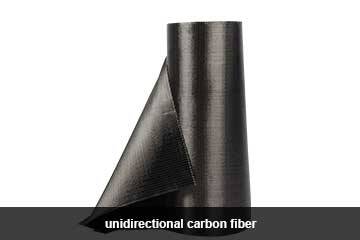

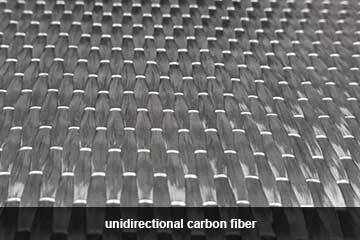

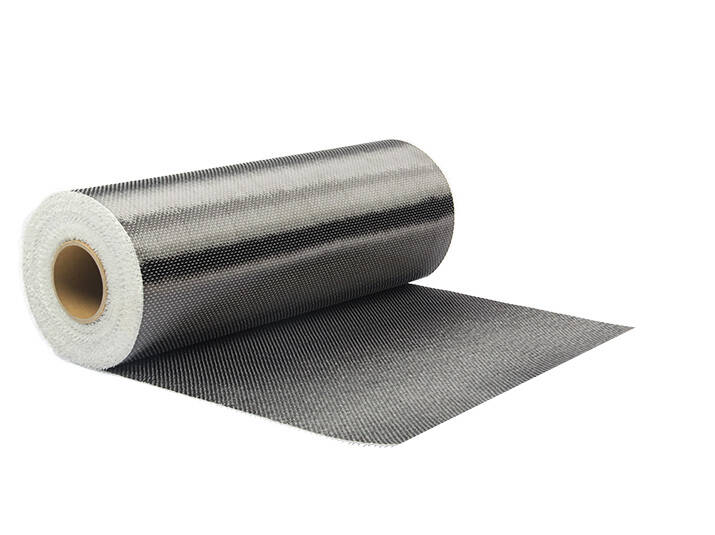

Unidirectional black weaves carbon fiber sheet (bidirectional carbon fiber cloth can be customized by requirements).
Typic width are 10cm, 15cm, 20cm, 25cm, 30cm, 50cm, 60cm.
other width can be customized by requirements.
Shanghai Horse Construction carbon fiber sheet roll length should be 100m/roll.

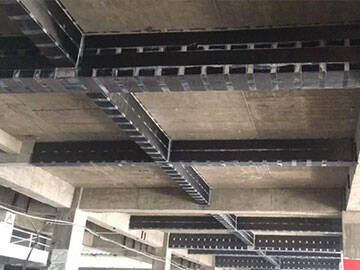

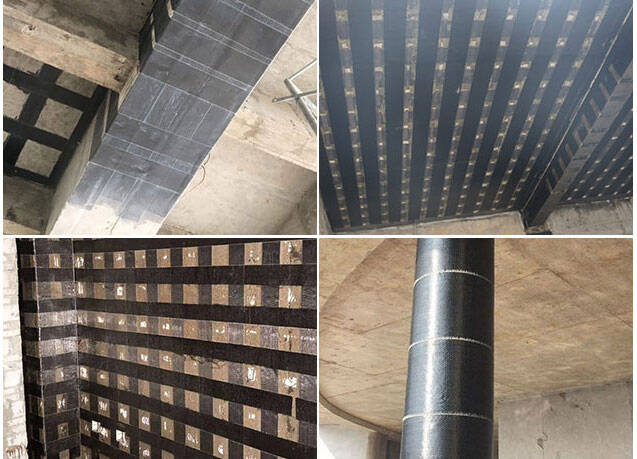

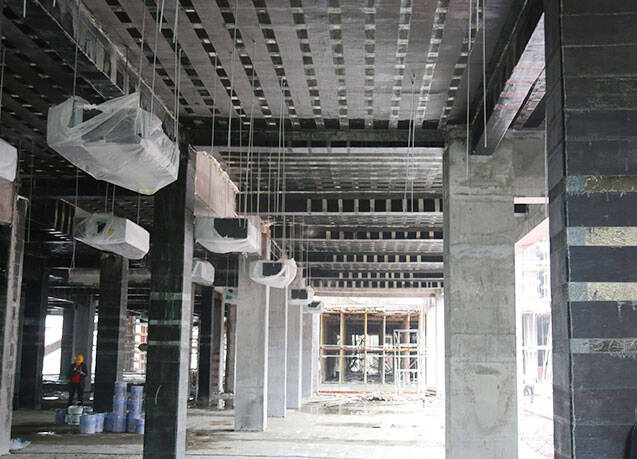

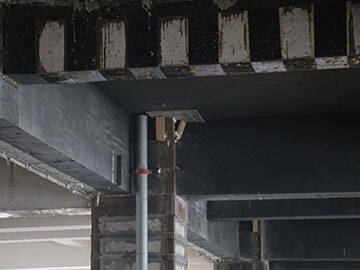

Horse carbon fiber reinforced polymer(CFRP)sheet for structural strengthening of column, beam, slab, wall
Carbon Fiber Strengthening Video(click it)
>>The treatment of concrete surface
The cosmetic layer, oil, dirt etc. Of concrete surface should be chiseled off and then rubbed off 1 ~2 mm thick surface layer with the angle grinder, concrete components should be handled by chamfering on the corner, dust was blew out with compressed air after the completion Of polishing, and finally the surface was wiped by cotton cloth dipped in acetone, and kept dry for use. If the concrete needed to strengthen existed cracks, first choose HM-120M perfusion adhesive or HM-120L pouring crack adhesive to perfuse according to the size of crack, and then strengthen.
>>Primer construction
When construction, two components of HM-180 primer were weighed according to the stipulated proportion of preparing glue, and dumped into a clean container and stirred to uniformity (when mixing, best mix along the same direction to avoid the air from form ingair bubbles.) Brush or roller brush was used to evenly brush on the concrete surface, after the glue surface layer dried, it should be brushed several times depending on the particular circumstances, but the coating thickness did not exceed 0.4 mm, and it should not be missed out to brush, or have flowing or bubbles, waiting for glue curing (curing time was depended on the site temperature, it was appropriate when finger felt dry, generally not less than 2 hours), then the next process was proceeded. The glue prepared every time should be used up one time during the applicable period of the glue.
>>Leveling construction
The pores and defects on concrete surface were filled by HM-180CE leveling adhesive. When depression area was existed, the prepared leveling adhesive was used to repair and fill through scraper embedding and scraping, the position emerging altitude difference such as the joint of templates should be filled by leveling adhesive, which tried to minimize the height difference. The treatment of corner was that it was repaired to smooth arc through leveling adhesive, its radius was not more than 20mm. After the leveling adhesive cured (curing time was depended on the site temperature, it was appropriate when finger felt dry, generally not less than 2 hours), the next process should be proceeded further.

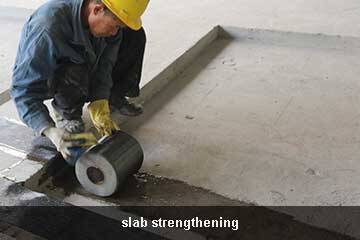

>>Paste of unidirectional carbon fiber sheet
HM-180C3P carbon fiber impregnated adhesive was smeared to the pasted area evenly, the corner site was more smeared appropriately. Paste after hauling unidirectional carbon fiber sheet tight and alignment, use a plastic scraper or roller (a paint roller that the villus was removed outside) to roll repeatedly along the same direction, until the glue compound exuded. And then smear impregnated adhesive to the outside surface of the carbon fiber sheet evenly, and roll repeatedly that the impregnated adhesive can immerse the carbon fiber sheet in two ways, if it is multi-paste, until your fingers touch dry, the next layer of paste can be beginner. If the carbon fiber sheet needs overlapping.
>>Curing and conservation
Prevent rain or moisture 24 hours after the completion of construction, and pay attention to protection against a hard Object bumping into the surface of the construction. When the average air temperature is 20 , 25 ℃ , the curing time is not less than 3 days; when the average air temperature is 10 ℃, the curing time is not less than 7 days.
