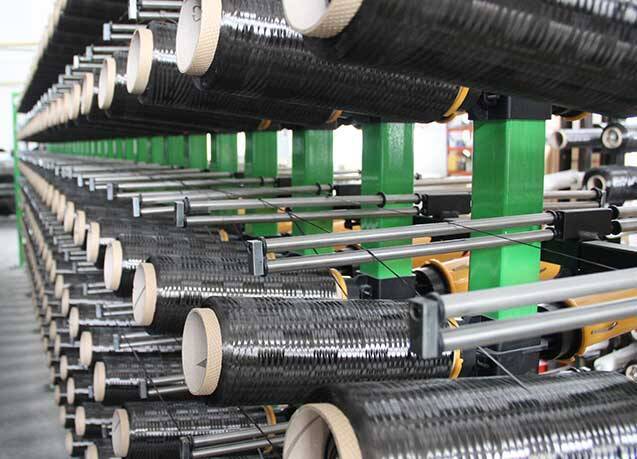

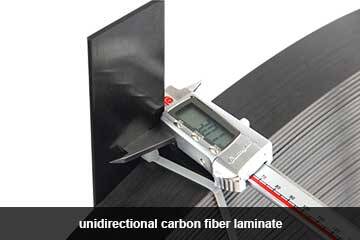

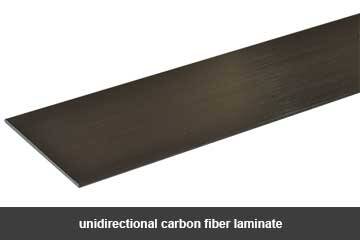

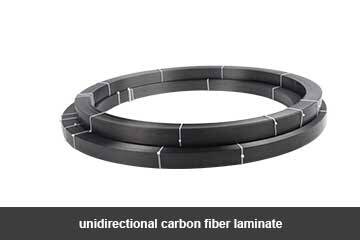

• Raw material, 4900~5500Mpa aviation raw fiber
• Raw material, 4900~5500Mpa aviation raw fiber
• High strength, high modulus
• High strength, high modulus
• Load increases
• Load increases

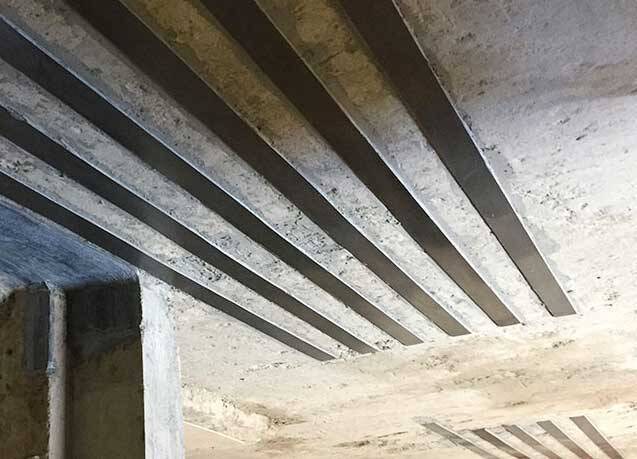

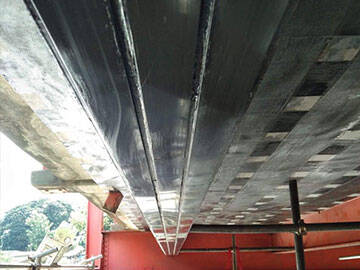

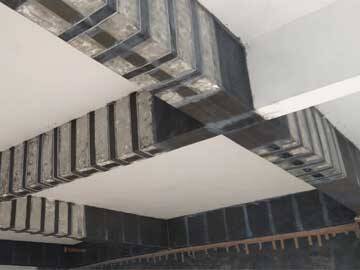

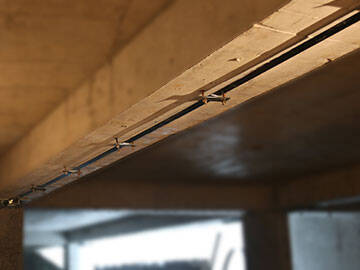

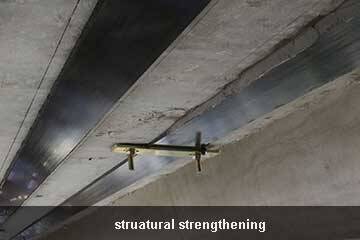

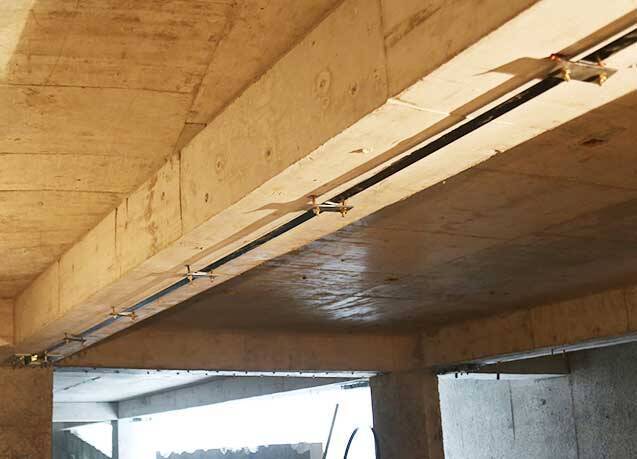

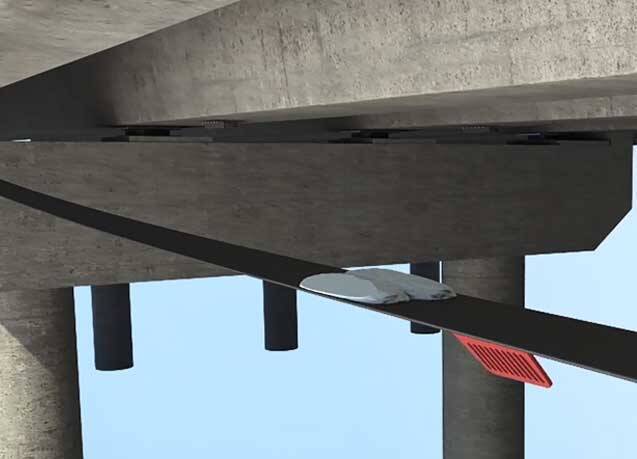

• Beams strengthening
• Beams strengthening

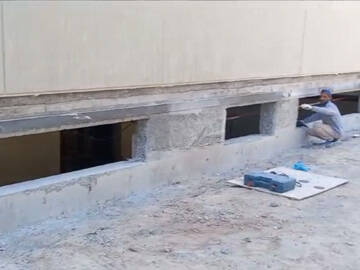

• Concrete substrate
• Concrete substrate

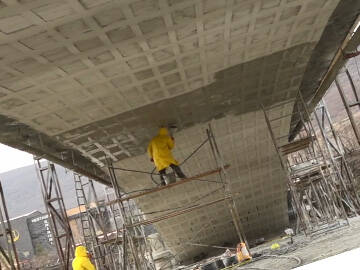

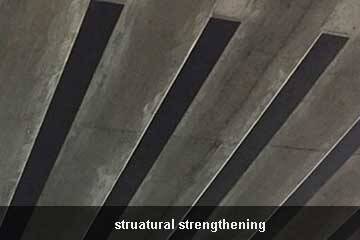

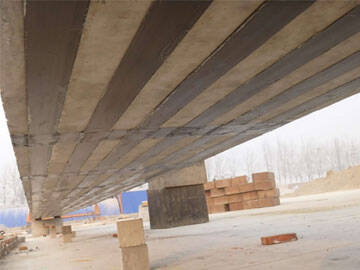

• Civil buildings
• Civil buildings

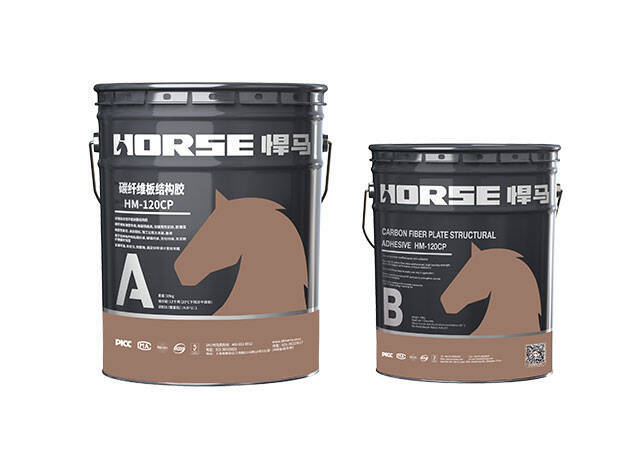

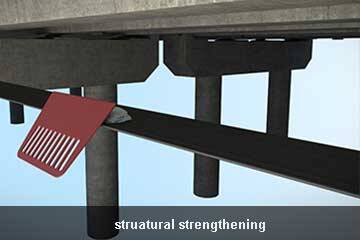

HM-120CP carbon fiber plate adhesive, designed for HORSE carbon fiber plate/strip/laminate.
HM-120CP carbon fiber plate adhesive, designed for HORSE carbon fiber plate/strip/laminate.
• Setting out according to design
• Setting out according to designDocuments
HM- 1.2T carbon fiber plate ↓
HM- 1.4T carbon fiber plate ↓
• Product catalog:
Horse FRP strengthening system ↓
• Design software:
Horse FRP Strengthening Design Software ↓ ↓
• Videos:
Tensile strength test: Unidirectional carbon fiber strip
Factory: Unidirectional carbon fiber strip manufacturer
Documents
HM- 1.2T carbon fiber plate ↓
HM- 1.4T carbon fiber plate ↓
• Product catalog:
Horse FRP strengthening system ↓
• Design software:
Horse FRP Strengthening Design Software ↓ ↓
• Videos:
Tensile strength test: Unidirectional carbon fiber strip
Factory: Unidirectional carbon fiber strip manufacturer Advantages of CFRP Plate Strengthening
• No maintenance required
• Easy installation, low installation cost
• Light weight, no influence to original structure
• Corrosion resistance, long-term effect of 50 years
• Cost effective compared with other retrofitting method
• 1 layers of CFRP plate is equivalent to 4-8 layers of CFRP fabric
Advantages of CFRP Plate Strengthening
• No maintenance required
• Easy installation, low installation cost
• Light weight, no influence to original structure
• Corrosion resistance, long-term effect of 50 years
• Cost effective compared with other retrofitting method
• 1 layers of CFRP plate is equivalent to 4-8 layers of CFRP fabric

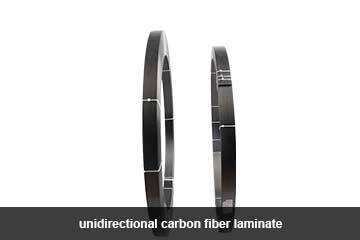

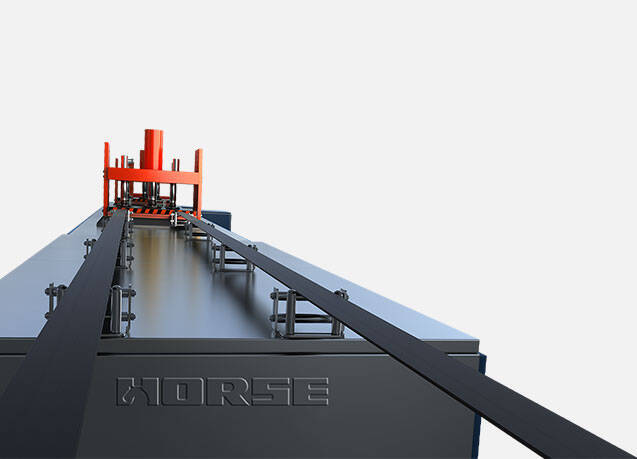

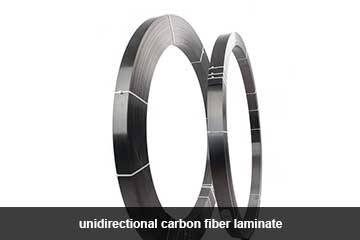

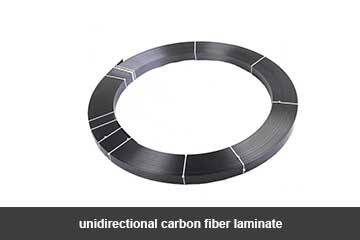

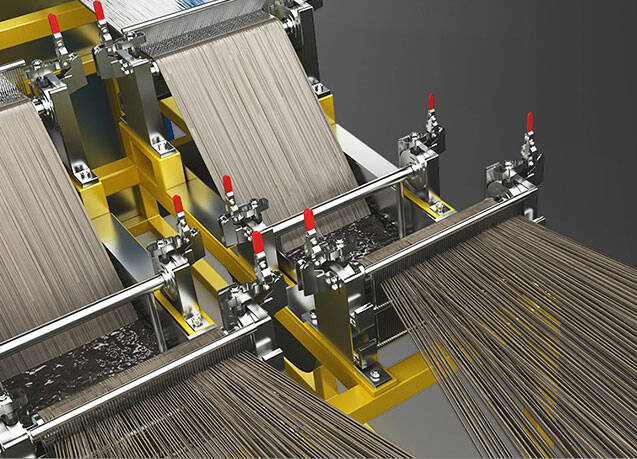

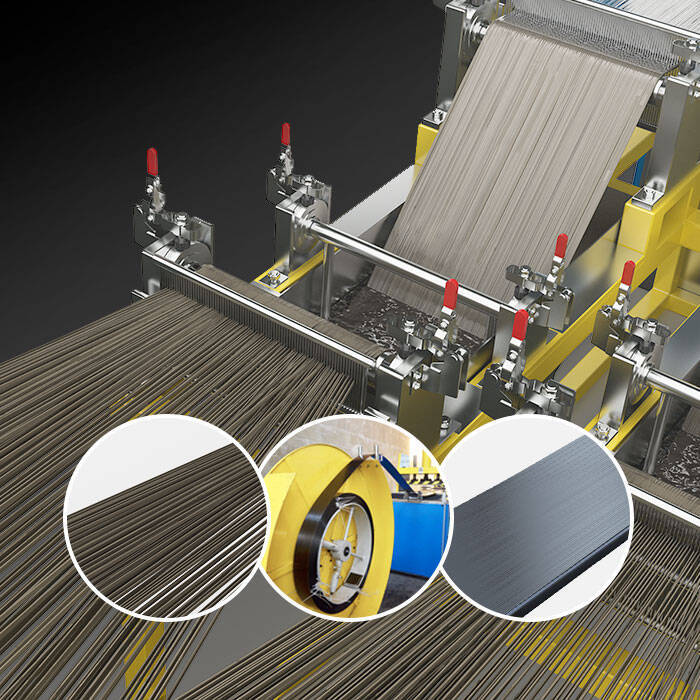

Manufacturer of Unidirectional Carbon Fiber Plate
• Donier, 3 carbon fiber plate production lines, 2,000 meters per day
• Stock, 10,000 meters
• Factory, 5,000 square meters
• Laboratory, laboratory and 3 technologies
• Test and report, third party testing reports, ASTM-D3039
• Projects, 7,000 projects from 76 countries
Manufacturer of Unidirectional Carbon Fiber Plate
• Donier, 3 carbon fiber plate production lines, 2,000 meters per day
• Stock, 10,000 meters
• Factory, 5,000 square meters
• Laboratory, laboratory and 3 technologies
• Test and report, third party testing reports, ASTM-D3039
• Projects, 7,000 projects from 76 countries Key Characteristics of Carbon Fiber Plate
• Light weight
• Easy to install
• Easy to check after construction
• Environmental friendly
• Outstanding fatigue resistance, alkali resistance, acid resistance
Key Characteristics of Carbon Fiber Plate
• Light weight
• Easy to install
• Easy to check after construction
• Environmental friendly
• Outstanding fatigue resistance, alkali resistance, acid resistance
Application Range of Carbon Fiber Plate Strengthening
• Seismic reinforcement
• Improve structural state
• Damage of structural parts
• Change the structural function
• Remit mistakes in design and construction
Application Range of Carbon Fiber Plate Strengthening
• Seismic reinforcement
• Improve structural state
• Damage of structural parts
• Change the structural function
• Remit mistakes in design and construction Structural Elements of Carbon Fiber Plate Strengthening

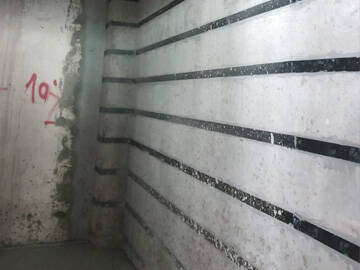

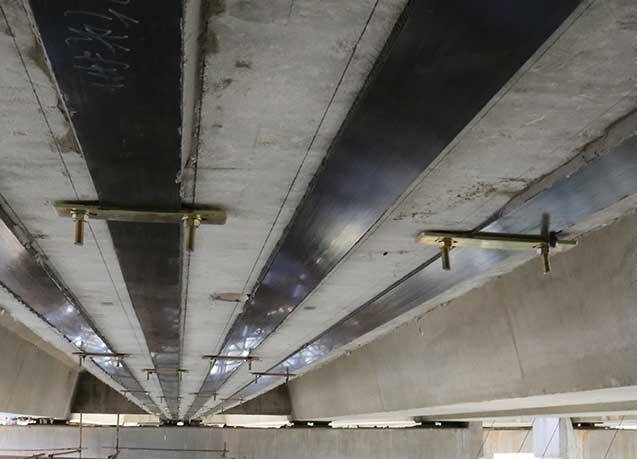

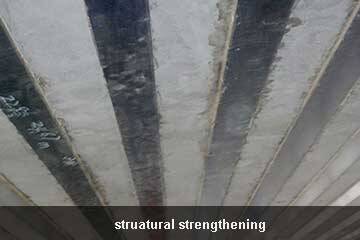

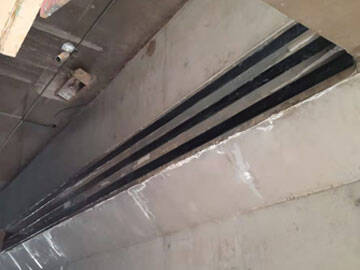

• Slabs strengthening
• Walls strengthening
• Pipes strengthening
• Pier caps strengthening
Structural Elements of Carbon Fiber Plate Strengthening
• Slabs strengthening
• Walls strengthening
• Pipes strengthening
• Pier caps strengthening
Base Substrates of Carbon Fiber Plate Strengthening

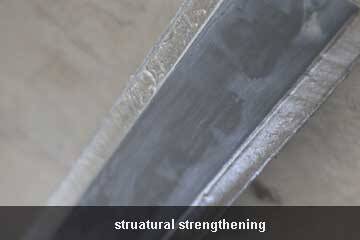

• Steel substrate
• Masonry substrate
• Timber substrate
Base Substrates of Carbon Fiber Plate Strengthening
• Steel substrate
• Masonry substrate

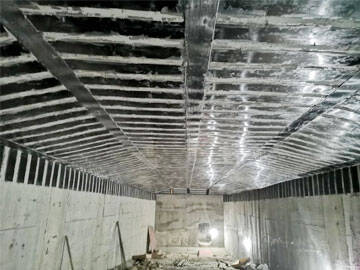

• Timber substrate Construction Field of Carbon Fiber Plate Strengthening

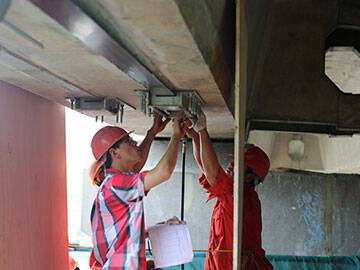

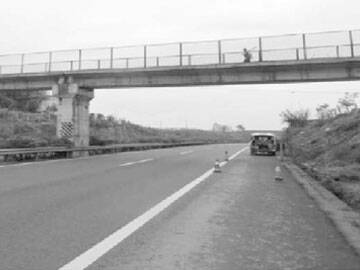

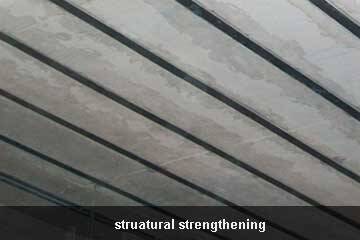

• Bridges
• Tunnels
• Piers/wharfs
• Airports
• Highways, railways
Construction Field of Carbon Fiber Plate Strengthening
• Bridges
• Tunnels
• Piers/wharfs
• Airports
• Highways, railways
Manufacturer Epoxy System
Manufacturer Epoxy System
How to Use Horse Carbon Fiber Plate
• Polish the surface of concrete surface
• Prepare ingredients
• Applying HM-120CP adhesive

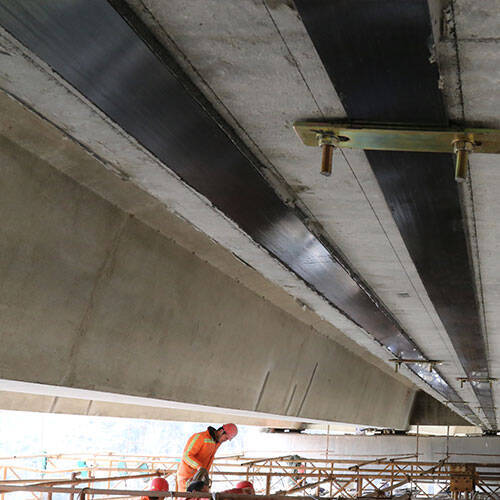

• Installation Horse carbon fiber reinforced strip plate
• Maintenance
How to Use Horse Carbon Fiber Plate
• Polish the surface of concrete surface
• Prepare ingredients
• Applying HM-120CP adhesive
• Installation Horse carbon fiber reinforced strip plate
• Maintenance

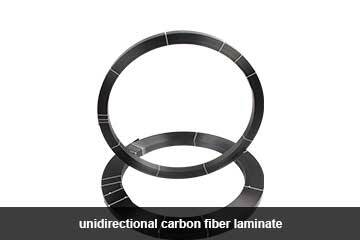

Horse CFRP Plate's Date Sheet
HM-1.2T Technical Data Sheet.pdf
HM-1.4T Technical Data Sheet.pdf
Item | HM-1.2T Carbon Fiber Plate | HM-1.4T Carbon Fiber Plate | HM-2.0T Carbon Fiber Plate | HM-3.0T Carbon Fiber Plate |
Thickness(mm) | 1.2 | 1.4 | 2.0 | 3.0 |
Length(m) | 100 | 100 | 100 | 100 |
Width(mm) | 50、100 | 50、100 | 50、100 | 50、100 |
Density(g/cm3) | 1.6 |
Base | Carbon fiber reinforced polymer with an epoxy resin matrix | |
Shelf Life | Unlimited (no exposure to direct sunlight) | |
Color | Black carbon fiber plate | |
Tensile Strength | Mean Value | 3100MPa |
Design Value | 2600MPa | |
Modulus Of Elasticity | Mean Value | 165,000MPa |
Design Value | 160,000MPa | |
Elongation at Break | 1.7% | |
Thickness | 1.2mm, 1.4mm, 2.0mm, 3.0mm | |
Temperature Resistance | >300° F(>150℃) | |
Fiber Volumetric Content | >68% | |
Density | 0.058 lbs./in 3 (1.6g/cm3) |

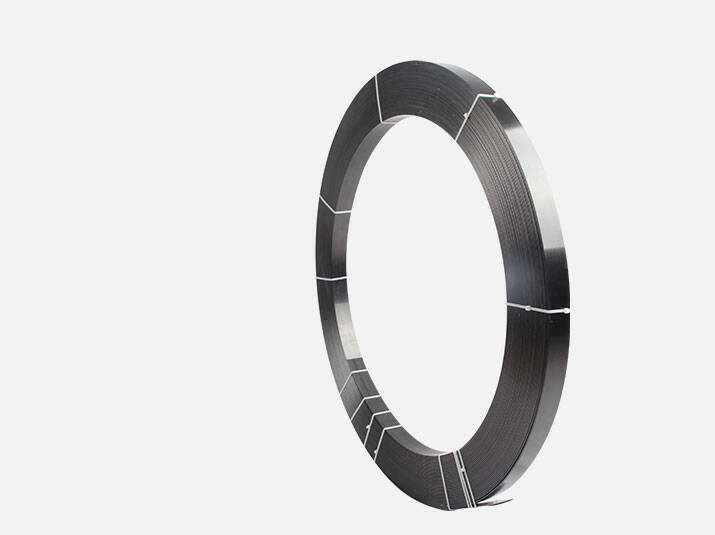

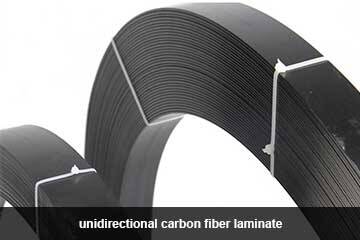

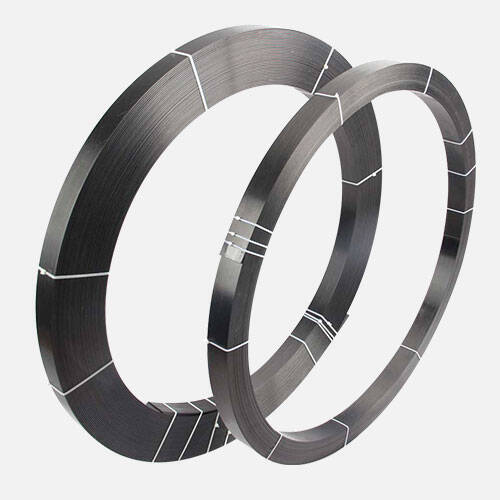

Package

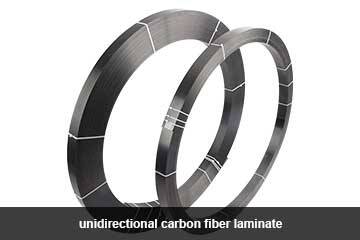

The length of Horse carbon fiber plate is 100m, the width is divided into 50mm, 100mm; the thickness is divided into 1.2mm, 1.4mm, 2.0mm, 3.0mm. Roll into a ring and use a belt to bind. Other specifications can be customized.
Operation Process of Horse CFRP Strip/Laminate/Plate Strengthening
Carbon Fiber Plate Strengthening Video(click it)
Setting line according to design;
Polish the surface of concrete surface to remove painting of
surface, blow out that floating dust with compressed air;
Prepare ingredients: agitate component A and B evenly in
packaging bucket by weighting in accordance with the weight
ratio A:B=2:1;
Applying adhesive: paste the above mixed glue compounds onto
the surface of carbon fiber strip evenly, please avoid bubbles;

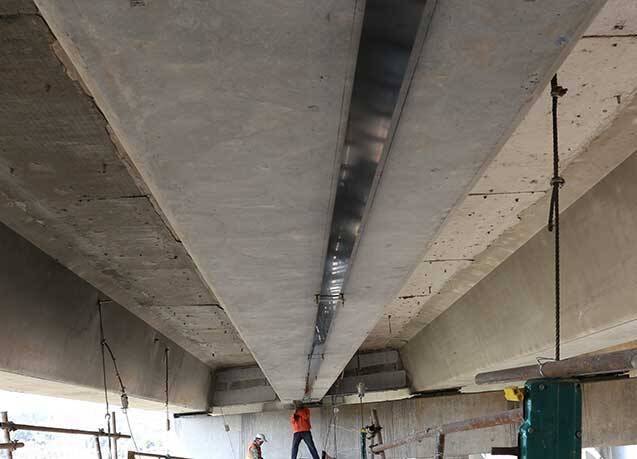

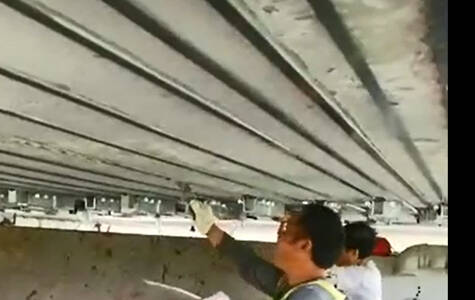

Installation: paste the carbon fiber plate onto the concrete surface
and fixed with steel strip;
Remove excessive glue compounds around, and fix with steel
framework;
Maintenance: conservation time should be no less than 24 hours
at room temperature.
