Advantages of CFRP Strip Strengthening

• Short construction period
• No maintenance required
• Easy installation, low installation cost
• Light weight, no influence to original structure
• Corrosion resistance, long-term effect of 50 years
• Cost effective compared with other retrofitting method
• 1 layers of CFRP laminate is equivalent to 4-8 layers of CFRP fabric

Advantages of CFRP Strip Strengthening

• Short construction period
• No maintenance required
• Easy installation, low installation cost
• Light weight, no influence to original structure
• Corrosion resistance, long-term effect of 50 years
• Cost effective compared with other retrofitting method
• 1 layers of CFRP laminate is equivalent to 4-8 layers of CFRP fabric

carbon fiber strip manufacturer

Key Characteristics of Carbon Fiber Strip

• High strength, high modulus
• Light weight
• Easy to install
• Easy to check after construction
• Environmental friendly
• Outstanding fatigue resistance, alkali resistance, acid resistance

carbon fiber strip manufacturer

Key Characteristics of Carbon Fiber Strip

• High strength, high modulus
• Light weight
• Easy to install
• Easy to check after construction
• Environmental friendly
• Outstanding fatigue resistance, alkali resistance, acid resistance

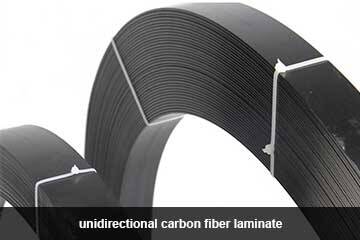

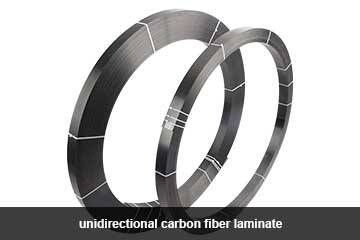

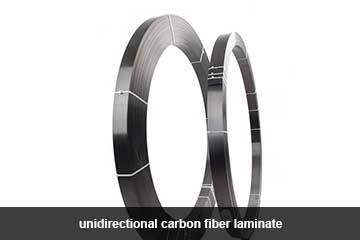

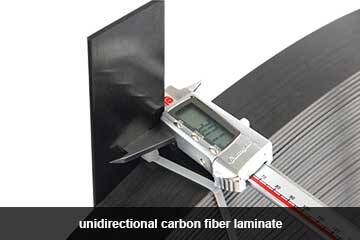

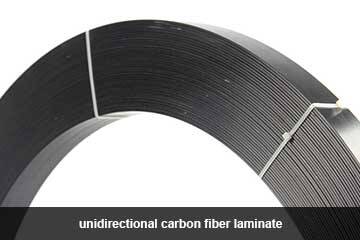

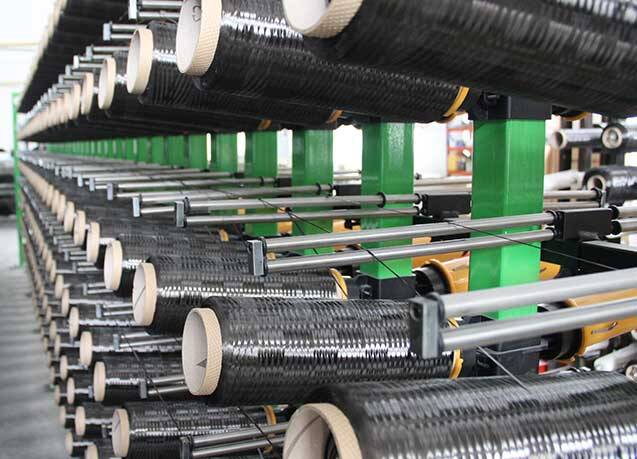

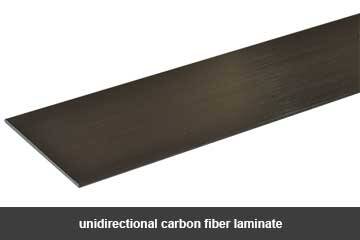

Manufacturer of Unidirectional Carbon Fiber Laminate

• The largest and most professional carbon fiber laminate manufacturer in China

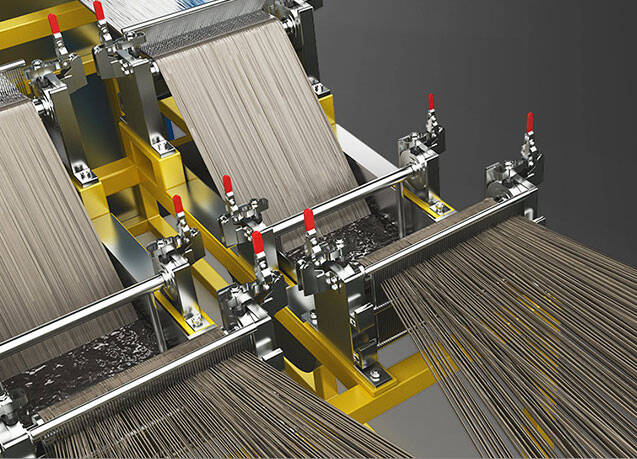

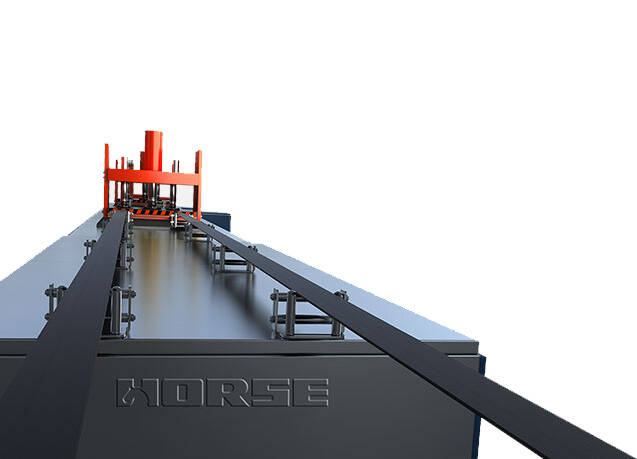

• 2 carbon fiber strip production lines, 2,000 meters per day
• The daily storage of carbon fiber laminate is 10,000 meters, and the daily storage of adhesive is 50 tons
• The factory covers an area of 5,000 square meters
• Equipped with an independent laboratory and 3 technologies to test data at any time

Manufacturer of Unidirectional Carbon Fiber Laminate

• The largest and most professional carbon fiber laminate manufacturer in China
• 2 carbon fiber strip production lines, 2,000 meters per day
• The daily storage of carbon fiber laminate is 10,000 meters, and the daily storage of adhesive is 50 tons
• The factory covers an area of 5,000 square meters
• Equipped with an independent laboratory and 3 technologies to test data at any time

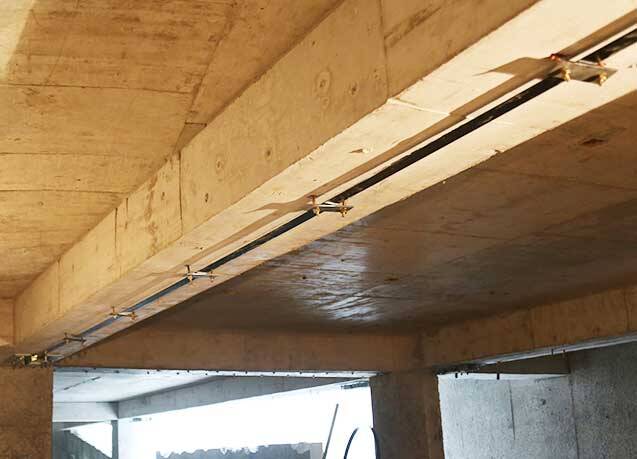

carbon fiber plate structural strengthening

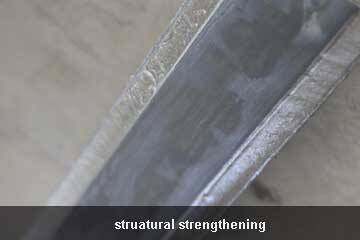

Application Range of Carbon Fiber Strip Strengthening

• Load increases
• Seismic reinforcement
• Improve structural state
• Damage of structural parts
• Change the structural function
• Remit mistakes in design and construction

carbon fiber plate structural strengthening

Application Range of Carbon Fiber Strip Strengthening

• Load increases
• Seismic reinforcement
• Improve structural state
• Damage of structural parts
• Change the structural function
• Remit mistakes in design and construction

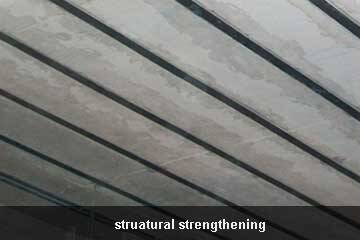

carbon fiber strip structural strengthening

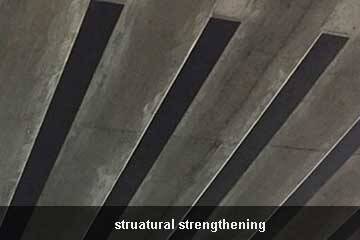

Structural Elements of Carbon Fiber Laminate Strengthening

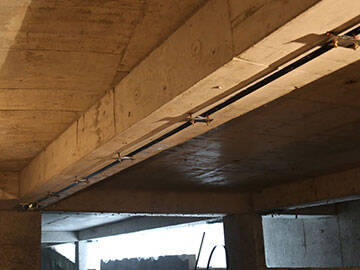

• Beams strengthening
• Slabs strengthening
• Walls strengthening
• Pipes strengthening
• Pier caps strengthening

Structural Elements of Carbon Fiber Laminate Strengthening

• Beams strengthening
• Slabs strengthening
• Walls strengthening
• Pipes strengthening
• Pier caps strengthening

carbon fiber strip structural strengthening

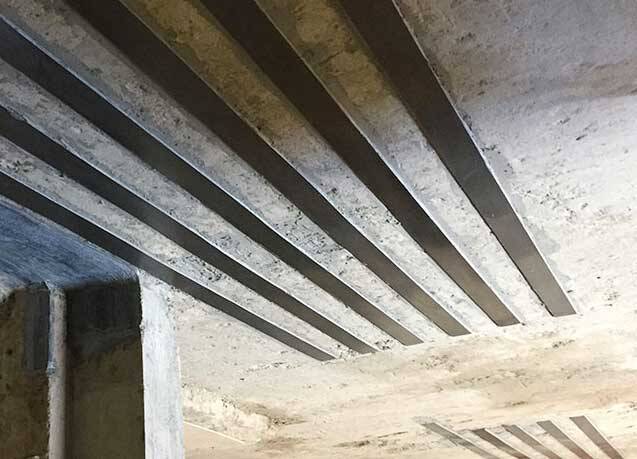

carbon fiber laminate concrete repair

Base Substrates of Carbon Fiber Laminate Strengthening

• Concrete substrate
• Steel substrate
• Masonry substrate
• Timber substrate

carbon fiber laminate concrete repair

Base Substrates of Carbon Fiber Laminate Strengthening

• Concrete substrate
• Steel substrate
• Masonry substrate
• Timber substrate

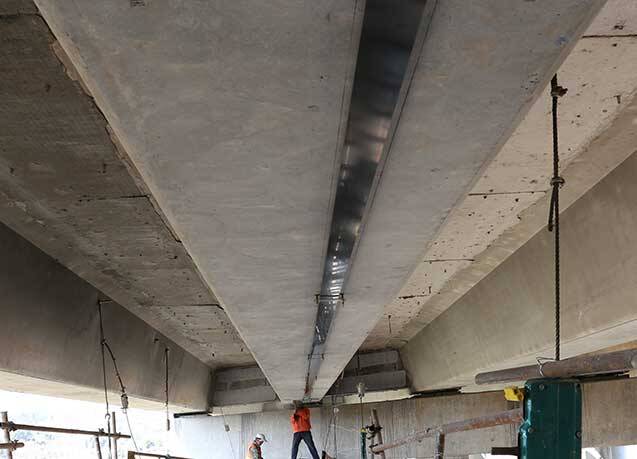

carbon fiber plate concrete repair

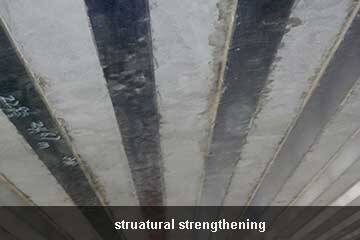

Construction Field of Carbon Fiber Laminate Strengthening

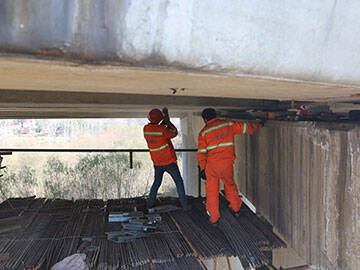

• Civil buildings
• Bridges
• Tunnels
• Piers/wharfs
• Airports
• Highways, railways

Construction Field of Carbon Fiber Laminate Strengthening

• Civil buildings
• Bridges
• Tunnels
• Piers/wharfs
• Airports
• Highways, railways

carbon fiber plate concrete repair

Best Matched Epoxy System

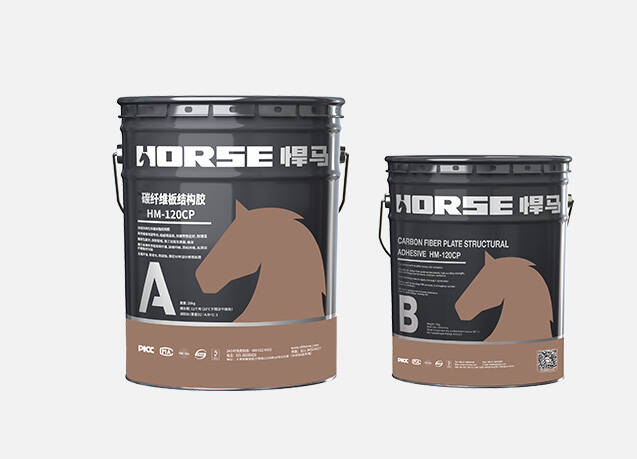

HM-120CP carbon fiber plate adhesive, designed for HORSE carbon fiber strip/laminate.

Best Matched Epoxy System

HM-120CP carbon fiber plate adhesive, designed for HORSE carbon fiber strip/laminate.

reinforcement of concrete with carbon fiber laminate

How to Use Horse Carbon Fiber Strip

• Setting out according to design
• Polish the surface of concrete surface
• Prepare ingredients
• Applying HM-120CP adhesive
• Installation Horse carbon fiber reinforced strip plate
• Maintenance

How to Use Horse Carbon Fiber Strip

• Setting out according to design
• Polish the surface of concrete surface
• Prepare ingredients
• Applying HM-120CP adhesive
• Installation Horse carbon fiber reinforced strip plate
• Maintenance

reinforcement of concrete with carbon fiber laminate







Horse CFRP Plate's Date Sheet

HM-1.2T Technical Data Sheet.pdf

HM-1.4T Technical Data Sheet.pdf

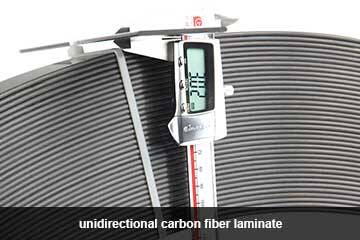

ItemHM-1.2T Carbon Fiber LaminateHM-1.4T Carbon Fiber LaminateHM-2.0T Carbon Fiber LaminateHM-3.0T Carbon Fiber Laminate
Thickness(mm)1.21.42.03.0
Length(m)100100100100
Width(mm)50、10050、10050、10050、100

Density(g/cm3)

1.6


Base
Carbon fiber reinforced polymer with an epoxy resin matrix
Shelf LifeUnlimited (no exposure to direct sunlight)
ColorBlack carbon fiber laminate
Tensile StrengthMean Value3100MPa
Design Value2600MPa
Modulus Of Elasticity

Mean Value

165,000MPa
Design Value 160,000MPa

Elongation at Break

1.7%

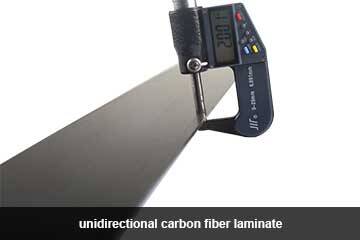

Thickness1.2mm, 1.4mm, 2.0mm, 3.0mm
Temperature Resistance>300°   F(>150℃)
Fiber Volumetric Content>68%
Density0.058 lbs./in 3 (1.6g/cm3)

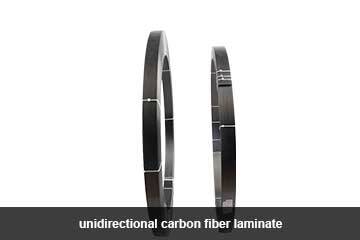

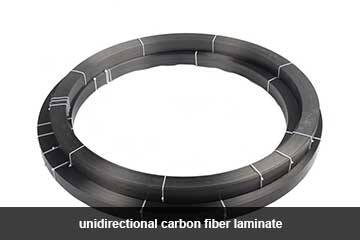

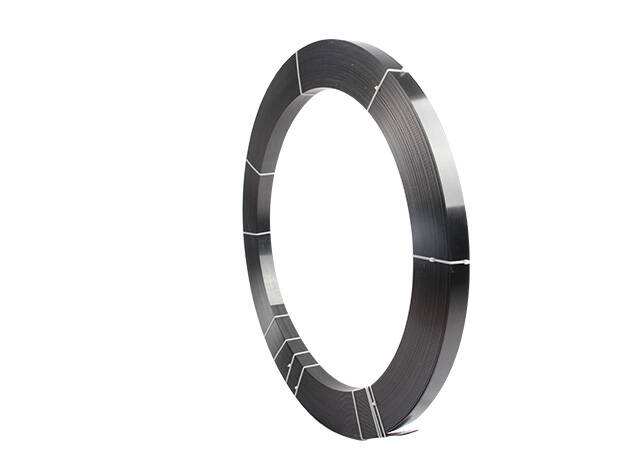

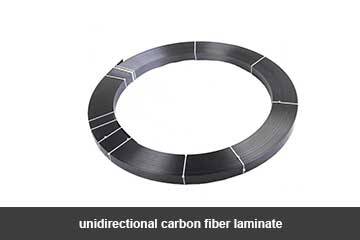

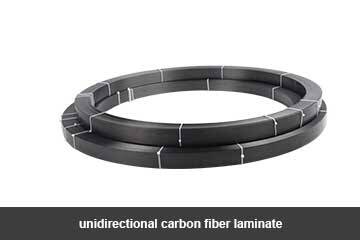

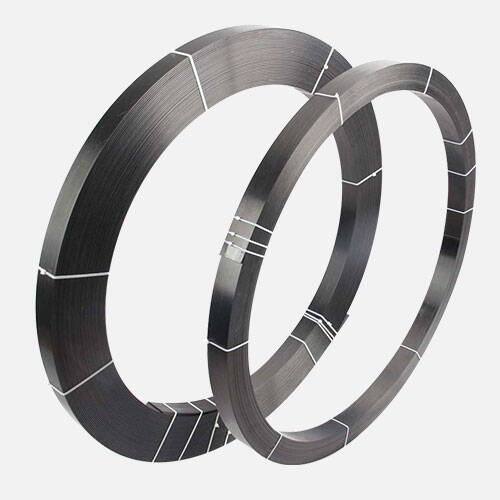

Package

The length of Horse carbon fiber laminate is 100m, the width is divided into 50mm, 100mm; the thickness is divided into 1.2mm, 1.4mm, 2.0mm, 3.0mm. Roll into a ring and use a belt to bind. Other specifications can be customized.


Operation Process of Horse CFRP Strip/Laminate/Plate Strengthening


Carbon Fiber Plate Strengthening Video(click it)



Setting line according to design;

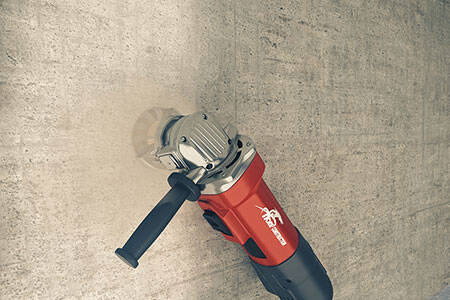

Polish the surface of concrete surface to remove painting of

surface, blow out that floating dust with compressed air;

carbon fiber plate install

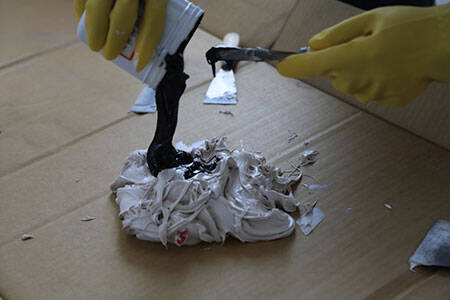

Prepare ingredients: agitate component A and B evenly in

 packaging bucket by weighting in accordance with the weight

 ratio A:B=2:1;

mix CFRP plate adhesive

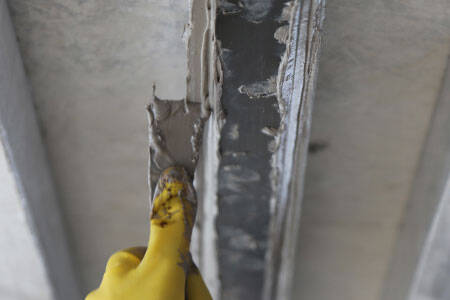

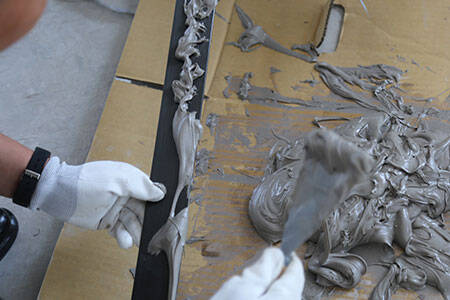

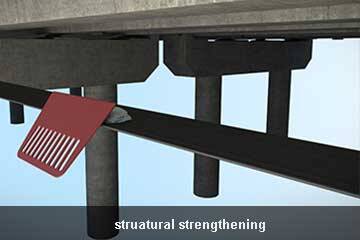

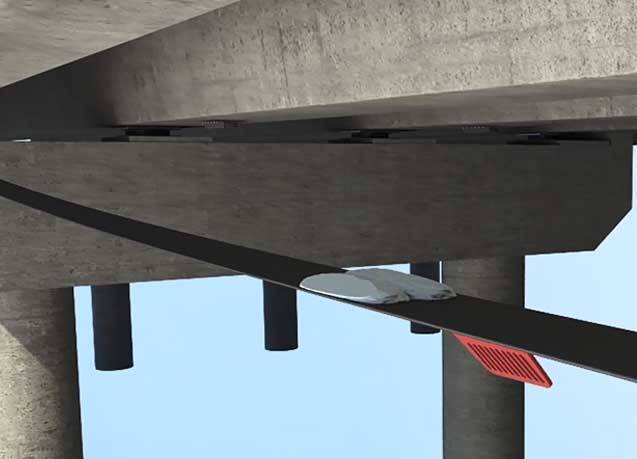

Applying adhesive: paste the above mixed glue compounds onto

 the surface of carbon fiber strip evenly, please avoid bubbles;

applying cfrp laminate adhesive

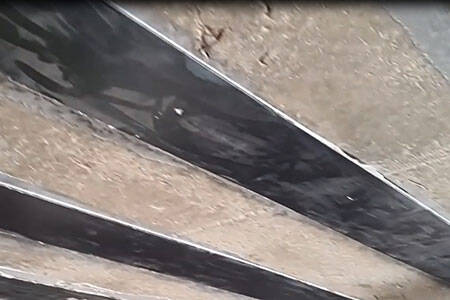

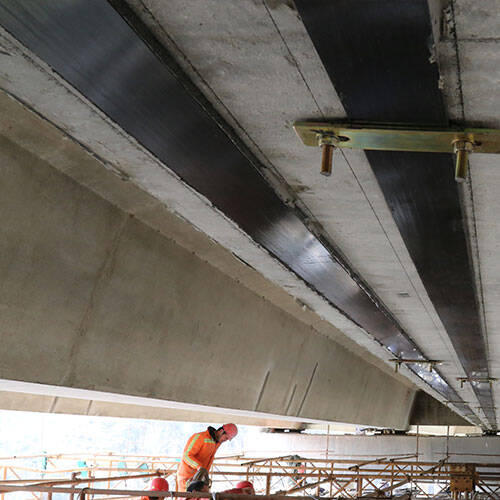

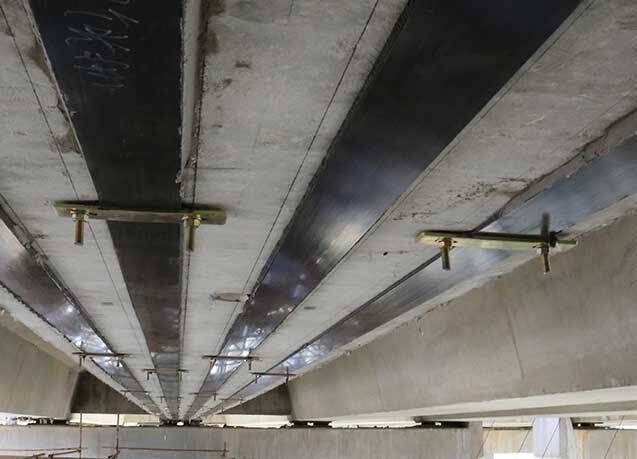

Installation: paste the carbon fiber plate onto the concrete surface

 and fixed with steel strip;

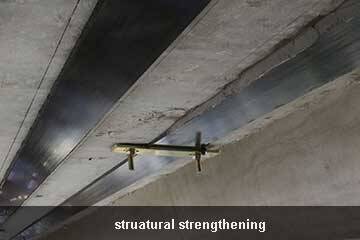

bonding carbon fiber laminate on concrete

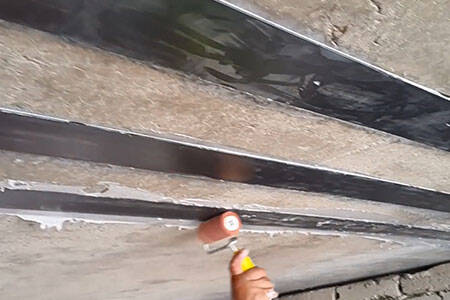

Remove excessive glue compounds around, and fix with steel

 framework;

externally bonding carbon fiber laminate for structural strengthening


Maintenance: conservation time should be no less than 24 hours

 at room temperature.

carbon fiber laminate structural strengthening
