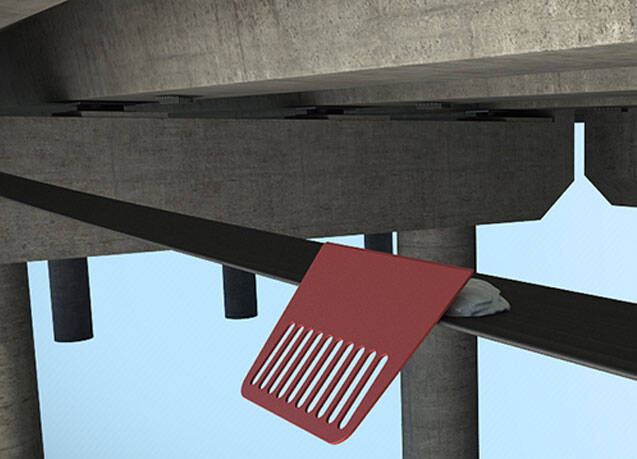

applying carbon fiber laminate adhesive on cfrp laminate

Characteristics of HM-120CP Epoxy

• Double component bidphenol-A modified epoxy resin based adhesive, non-hydrophilic, high bonding strength, water proof, anti-cprrpsion, environmental-friendly;

• Application in wide temperature scope;

• Excellent acid/alkali resistance and aging resistance, low moisture sensitivity.

Characteristics of HM-120CP Epoxy

• Double component bidphenol-A modified epoxy resin based adhesive, non-hydrophilic, high bonding strength, water proof, anti-cprrpsion, environmental-friendly;

• Application in wide temperature scope;

• Excellent acid/alkali resistance and aging resistance, low moisture sensitivity.

applying carbon fiber laminate adhesive on cfrp laminate

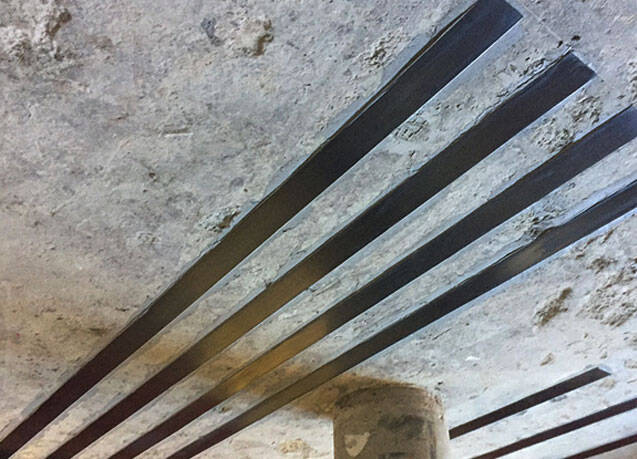

adhesive for carbon fiber plate structural strengthening

Application Range

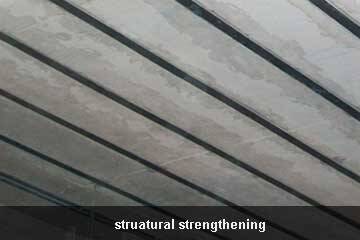

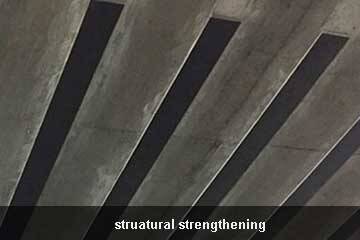

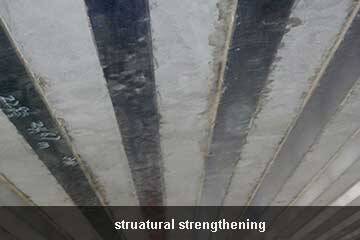

• Use together with Horse carbon fiber plate to fix on concrete surface

• Used for structure reinforcement with Horse pre-stress carbon fiber laminate system

adhesive for carbon fiber plate structural strengthening

Application Range

• Use together with Horse carbon fiber plate to fix on concrete surface

• Used for structure reinforcement with Horse pre-stress carbon fiber laminate system

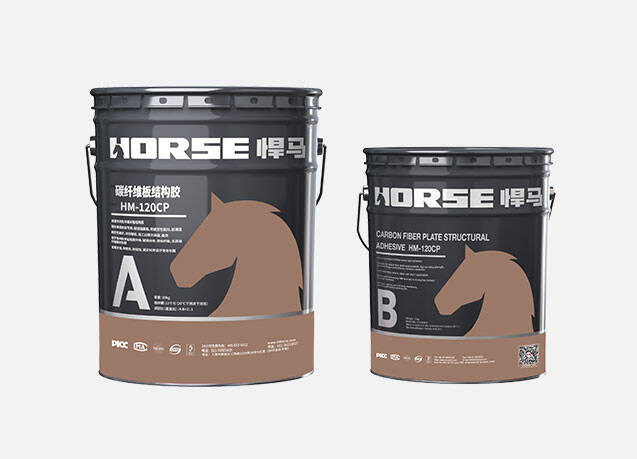

carbon fiber laminate adhesive for structural strengthening

Transportation and Storage

• The carbon fiber adhesive should store in a cool and dry place,storage period is 12 months. If storage period exceed 12 months, the product should be tested, if the physical and mechanical properties meet the standard requirements,you can still continue to use it.

• This product is non-toxic, belong to non-dangerous goods, transport as a goods, transport as a general chemical building materials

Transportation and Storage

• The carbon fiber adhesive should store in a cool and dry place,storage period is 12 months. If storage period exceed 12 months, the product should be tested, if the physical and mechanical properties meet the standard requirements,you can still continue to use it.

• This product is non-toxic, belong to non-dangerous goods, transport as a goods, transport as a general chemical building materials

carbon fiber laminate adhesive for structural strengthening

Attention Points

• Mix proper quantity, use up in the applicable period.

• If there is any left, the lids of A B should be covered. Do not expose it in the air.

• Construction workers should take certain protective measures.

• The construction environment should be kept ventilated during construction.

• Avoid direct sunlight and high temperature.

Attention Points

• Mix proper quantity, use up in the applicable period.

• If there is any left, the lids of A B should be covered. Do not expose it in the air.

• Construction workers should take certain protective measures.

• The construction environment should be kept ventilated during construction.

• Avoid direct sunlight and high temperature.







Horse CFRP Plate adhesive Date Sheet

HM120CP Epoxy Adhesive for Carbon Fiber Plate1.pdf





Technical Parameters
AppearancePart A  Grey        Part B White
Density after curing1.6 g/cm3
Mixture Ratio (By weight)2:1
Operation time30 min
Shelf life12 months
Mechanical Properties


itemindex
Colloidal PerformanceTensile Strength(MPa)≥30
Tensile Elastic Modulus(MPa)≥3500
Elongation(%)≥1.3
Bending Strength(MPa)≥45
Compressive Strength(MPa)≥65
Bonding PropertiesSteel- Steel Shear Strength(MPa)≥15
Steel- Steel Shear Strength(MPa)≥16
Steel- Steel Bonding Strength(MPa)≥33
Bonding Strength with Concrete(MPa)≥2.5
Nonvolatile Content(Solid Content)(%)≥99


  • HM-120CP Carbon Plate Adhesive Install

  • 1.Setting out according to designing;

  • 2.Polish the surface of concrete surface to remove painting of the surface, blow out the floating dust with compressed air;

  • 3.Prepace ingredients: agitate component A and B evenly in packaging bucket by weighting in accordance with the weight ratio A:B=2:1;

  • 4.Installing: Past the above mixed glue compounds onto the surface of carbon fiber plate evenly, please avoid bubbles;

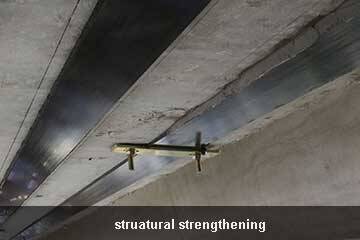

  • 5.Anchorage: paste the carbon fiber plate onto the concrete surface and fixed with steel srtip, remove excessive glue conpounds around, and fix With Steel framework;

  • 6.Maintenace: conservation time should be no less than 24 hours at room temperature.
