The fundamental advantage of carbon fiber reinforced beams lies in "maximum performance improvement at minimal structural cost." They address the core challenges of beam resistance, including bending, shear, and cracking, while also balancing ease of construction, long-term durability, and cost-effectiveness. They are particularly well-suited for reinforcement applications requiring high space, timelines, and environmental protection. Currently, this technology is widely used in beam reinforcement projects across industrial plants, bridges, and civil buildings. With the advancement of CFRP material localization, its application cost continues to decrease, further highlighting its cost-effectiveness.

Carbon fiber materials (especially carbon fiber reinforced composite materials (CFRP)) have become a mainstream technology for beam reinforcement. The following details their key advantages from four core perspectives: material properties, reinforcement effectiveness, construction applications, and long-term performance.

1. Material Advantages: Lightweight, Strong, and Durable, Suitable for Structural Requirements

The core properties of carbon fiber materials underlie their advantages in reinforcement, particularly meeting the need for "efficient performance improvement without adding additional burden" in beam structures:

1) High strength and high modulus provide exceptional reinforcement efficiency.

Carbon fiber's tensile strength can reach 7-10 times that of ordinary steel bars, and its elastic modulus is comparable to or even higher than that of steel bars (high-modulus CFRP can reach 2-3 times that of steel bars). Simply applying a few millimeters of CFRP sheeting or sheeting can significantly improve a beam's flexural capacity (addressing issues such as excessive mid-span deflection and cracking in the tension zone) and shear capacity (addressing insufficient shear at beam ends or at concentrated loads). For example, applying one or two layers of CFRP sheeting to a simply supported beam with insufficient flexural load can increase its flexural capacity by 20%-50%, while using far less material than traditional reinforcement with additional steel bars.

2) Lightweight and thin, it does not affect the structural appearance or usable space.

The surface density of carbon fiber cloth is only 200-600g/㎡, and the total thickness after bonding is typically less than 3mm. The thickness of carbon fiberplates also ranges from 1.2 to 10mm. Reinforcement barely increases the weight of the beam (typically less than 1%), nor does it significantly increase the cross-sectional dimensions. This makes it ideal for applications where limited building headroom and the need to preserve the exterior appearance are crucial, such as reinforcing historic buildings and interior beams, avoiding the space compression caused by traditional "cross-section enlargement" methods.

3) Excellent corrosion resistance and long-term stable performance.

Carbon fiber is chemically inert and unaffected by acid, alkali, salt, humidity, and temperature fluctuations. Unlike steel bars, it does not rust and expand, causing concrete cracking. In harsh environments such as humid, coastal areas, and chemical plants, CFRP reinforcement systems can achieve a service life of over 50 years (far exceeding the maintenance cycle of traditional steel reinforcement), significantly reducing the long-term maintenance costs of the structure.

4) Matching elastic properties and good force coordination.

The elastic modulus of carbon fiber is close to that of concrete and steel (or can be adjusted by selecting different types of CFRP). After reinforcement, it forms a "coordinated force system" with the original beam. Under load, the CFRP and the original beam's tensile reinforcement zones are subjected to force synchronously, avoiding "stress concentration" caused by differences in material stiffness and ensuring the reliability of the reinforcement effect.

2. Reinforcement Advantages: Targeted Solutions to Core Beam Defects

Carbon fiber reinforcement precisely addresses common beam structural issues, and the effects are quantifiable and controllable:

5) Effectively improves flexural performance and prevents cracks in tension zones

Excessive deflection at the mid-span of a beam and the appearance of multiple cracks >0.3mm wide in the tension zone are typical examples of insufficient flexural capacity. CFRP sheets/sheets bonded to the bottom of the beam can directly absorb some of the tensile forces, reducing the stress level of the original reinforcement. This not only increases the ultimate flexural capacity of the beam but also effectively reduces crack width (typically keeping it within 0.1mm), slowing crack development and extending the service life of the beam.

6) Enhances shear performance and prevents brittle shear failure

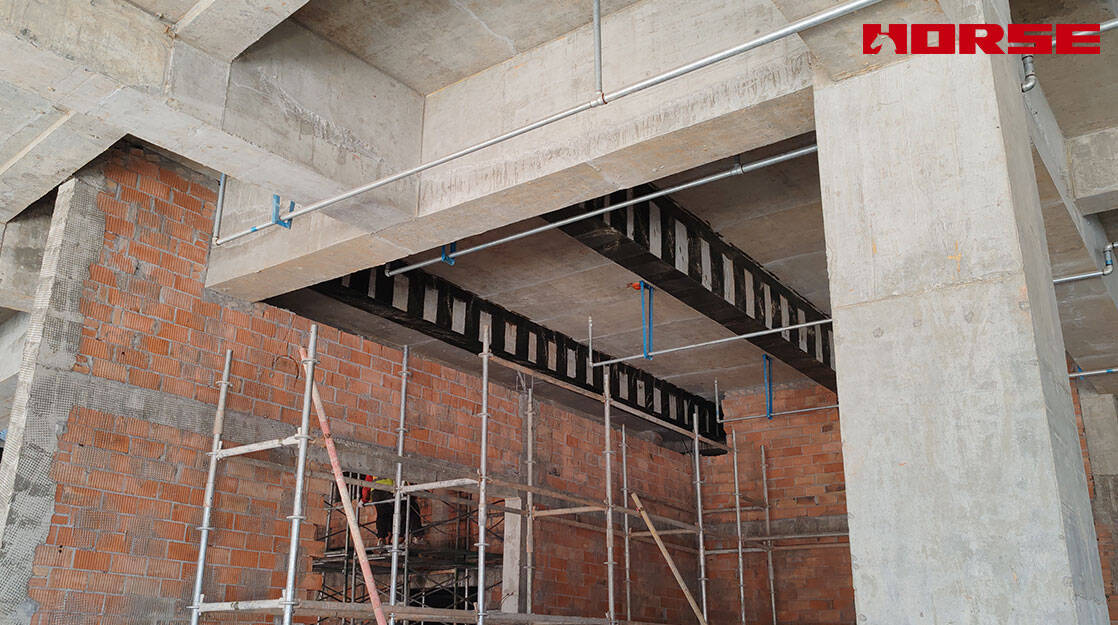

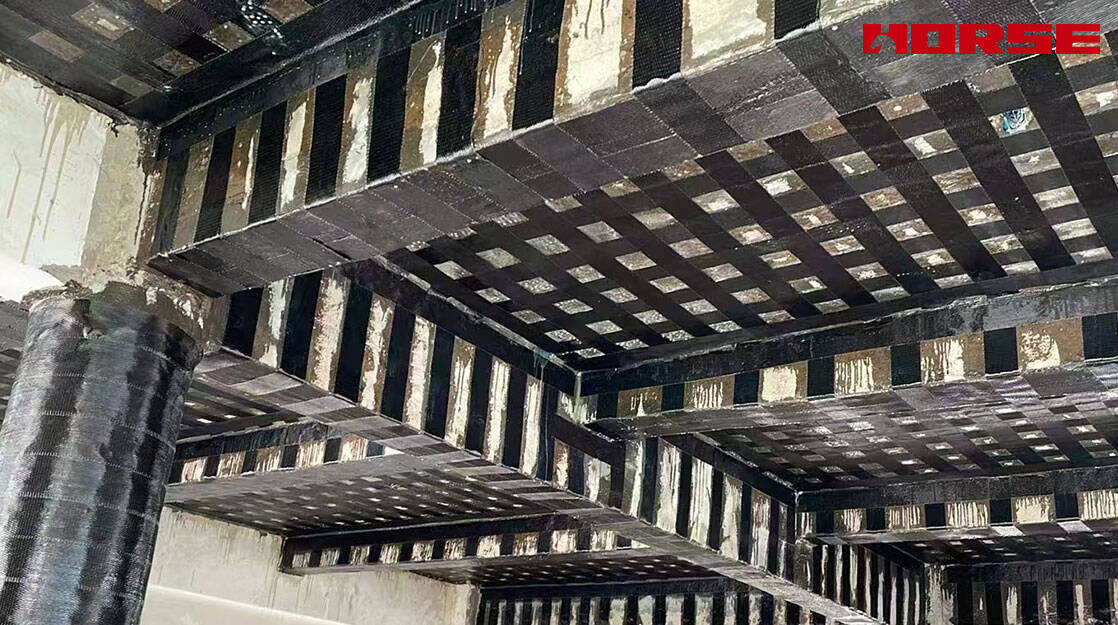

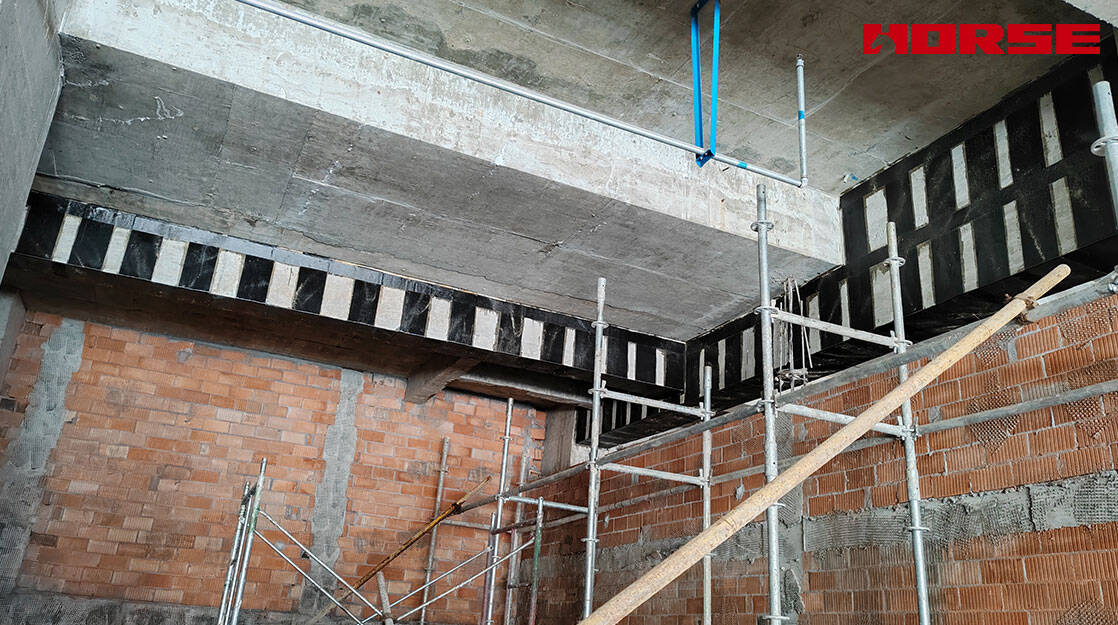

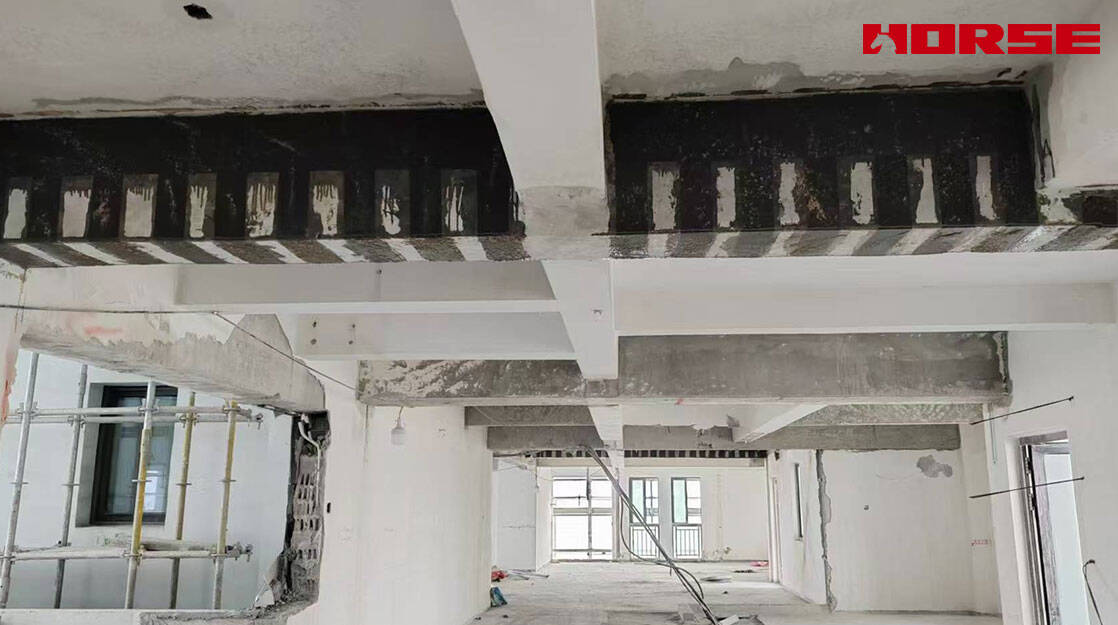

Shear failure in beams (such as diagonal cracks at beam ends and splitting at concentrated loads) is often brittle failure and presents no obvious warning signs. By attaching CFRP to the beam side in the form of "U-shaped hoops" or "closed hoops," the tensile strength of CFRP can be used to constrain the concrete, increasing the beam's shear capacity by up to 30%-60%. This also transforms "brittle shear failure" into "ductile bending failure," aligning with the principle of "strong shear, weak bending" in seismic design.

7) Repairing structural damage, restoring and exceeding original design performance

For beams whose performance has deteriorated due to excessive loads, concrete carbonization, or steel corrosion, CFRP reinforcement can achieve the dual goals of "damage repair + performance improvement." By attaching CFRP, the cross-sectional loss of corroded steel bars is compensated, or the integrity of carbonized concrete is enhanced. Ultimately, the beam's load-bearing capacity and stiffness are restored to their original design levels, or even increased to higher levels as needed (e.g., to accommodate the loads of newly added equipment).

3. Construction Application Advantages: Convenient, Fast, and Minimal Operational Disruption

Compared to traditional reinforcement techniques (such as cross-section enlargement and steel bonding), carbon fiber reinforcement offers significant advantages in construction experience:

8) Simple construction process, requiring minimal worker skill.

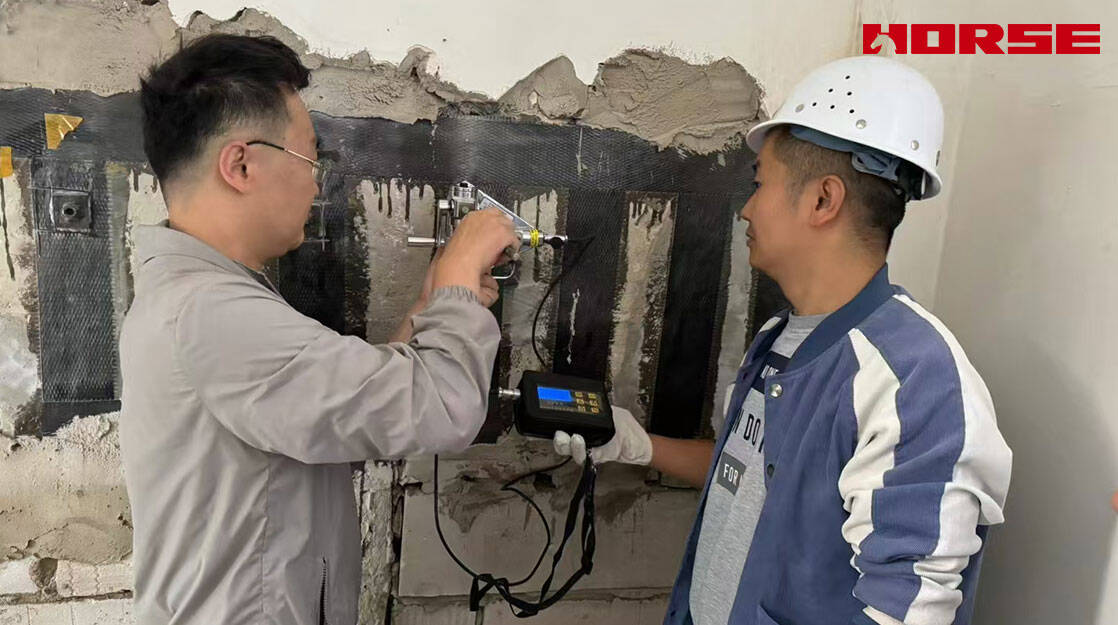

The core steps are simply "surface preparation → primer application → CFRP bonding → topcoat application." No large machinery (such as welding equipment or lifting equipment) or complex formwork support is required. Standard construction teams can operate the system with minimal training, and construction quality is easily controlled (primarily through acceptance criteria such as bonding density and anchorage length).

9) Fast construction speed, shortened construction period

After construction, the bond strength between CFRP and concrete reaches 80% of the design value within 24 hours at room temperature, and is fully cured and load-bearing within 7 days. Compared to the "cross-section enlargement" method (which requires formwork, rebar tying, concrete pouring, and 28 days of curing), the construction period can be shortened by over 80%.

10) Minimal disruption to structural operations, suitable for "non-stop reinforcement"

Construction is noiseless, vibration-free, and dust-free, and requires no significant space beneath the beam (e.g., no full-height scaffolding required; only a simple operating platform is required). This method is particularly suitable for beam reinforcement in "already-used buildings" such as office buildings, shopping malls, and bridges, enabling "construction while operations continue," avoiding losses caused by reinforcement downtime.

11) Widely applicable, suitable for a variety of beam types

CFRP can be used to reinforce beams of various types, including reinforced concrete, prestressed concrete, and plain concrete; and for beams with regular cross-sections (rectangular, T-shaped, I-shaped), as well as special-shaped sections. Even curved beams and beams damaged by fire can be reliably bonded by custom-cut CFRP sheets.

4. Long-term Comprehensive Advantages: Balancing Economic and Environmental Efficiency

From a lifecycle perspective, the "hidden advantages" of carbon fiber reinforcement are even more significant:

12) Lower overall cost, outstanding cost-effectiveness

Although the unit price of CFRP is higher than that of steel bars and steel plates, the overall cost (material + construction + construction period + maintenance) is more advantageous:

Low labor costs (no need for large machinery and a large number of workers);

Short construction period, indirectly reducing "downtime losses";

High corrosion resistance, requiring less frequent maintenance (traditional steel bonding methods require regular rust removal and painting, resulting in high maintenance costs).

For structures with a service life of more than 20 years, the lifecycle cost of CFRP reinforcement is 30%-50% lower than traditional methods.

13) Environmentally friendly and energy-saving, conforming to green building concepts

The production of carbon fiber consumes less energy than steel, and the reinforcement process does not require traditional building materials such as cement, sand, and gravel, reducing carbon emissions from building material production.

Please note that carbon fiber is not a panacea. Please contact us for more details.
