Carbon Fiber Reconstruction and Reinforcement for Large Commercial Building Structures

Due to the above advantages of carbon fiber reinforcement, it can fully meet the requirements of the reinforcement and transformation of large supermarkets, and the reinforcement and transformation of the structure can be completed in a relatively short period of time.

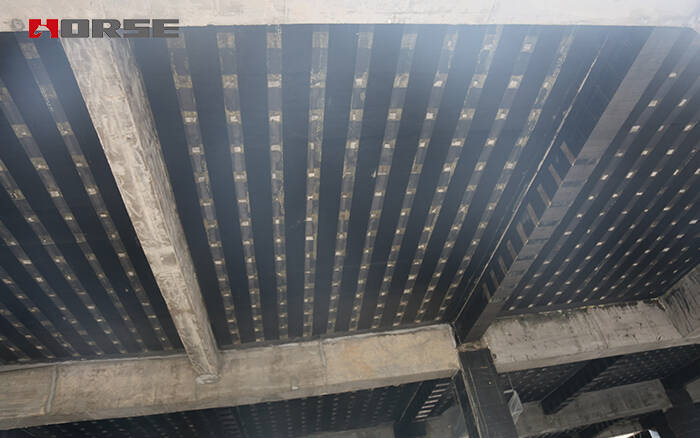

Carbon Fiber Reconstruction and Reinforcement


Project Overview

Kaiyuan Plaza is located in the commercial core area of Songjiang New Town. It consists of residences, single finely decorated apartments, five-star hotels and SHOPPINGMALL integrating shopping, dining, entertainment and leisure. In order to cooperate with the investment promotion work, the floor plan of the building needs to be rearranged. Most of them involve structural transformation. The section of the main beam is 850mm×400mm. It is not easy to change it casually, so the original structure needs to be reinforced. The positions of the two slope ladders in the large supermarket part need to be adjusted, the original reserved openings need to be closed, and other positions need to be re-opened, and they need to be completed in a relatively short period of time, which is the key and difficult point of the project. In addition, the internal space of large supermarkets is wide, the span of beams and slabs is large, the construction of general reinforcement technology is complex, the construction period is long, and the impact on the structure size and clear height is large, and the construction quality is not easy to be guaranteed, and regular maintenance in the later period is also difficult. Therefore, selecting the appropriate reinforcement technology is the key to completing the project on time and with quality.


Analysis of the characteristics of carbon fiber reinforcement technology

Compared with traditional reinforcement methods such as sticking steel plates and planting reinforcement reinforcement, carbon fiber reinforcement technology has obvious technical advantages:

1) Wide application. Carbon fiber fabric is a flexible material, suitable for the transformation and reinforcement of various types, shapes and parts of various structures.

2) Simple construction and high efficiency. The carbon fiber reinforcement technology does not require large construction machinery, and the construction work space is not limited, and the carbon fiber reinforcement technology is 4 to 8 times of the construction efficiency of the steel plate reinforcement.

3) No damage to the original structure and no influence on the appearance of the structure. Carbon fiber reinforcement technology uses epoxy resin-based bonding materials to paste carbon fiber cloth on the concrete surface. It is not necessary to excavate concrete or set anchor bolts, and it will not damage the original structure. It can also form protection for the internal concrete structure, and the thickness of the carbon fiber cloth is small, which has less influence on the size of the original structure.

4) Good durability. Carbon fiber material has good corrosion resistance, and the structure has good durability after reinforcement.


Due to the above advantages of carbon fiber reinforcement, it can fully meet the requirements of the reinforcement and transformation of large supermarkets, and the reinforcement and transformation of the structure can be completed in a relatively short period of time. After extensive discussions and expert demonstrations, the carbon fiber reinforcement technology was finally chosen to reinforce the structure.

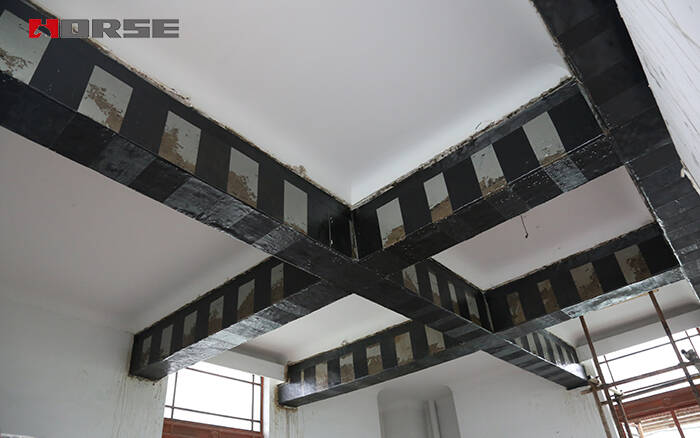

Carbon Fiber Reconstruction and Reinforcement


Process flow

The process flow of carbon fiber reinforcement construction technology is: concrete paste surface treatment → paste surface repair and leveling, primer application → unloading → carbon fiber cloth paste → inspection and maintenance.


Epilogue

At present, the project has been in use for nearly a year after the reinforcement, and no structural cracks that can be found by the human eye have been found in the follow-up observation in the later period. The use of carbon fiber reinforcement technology proved to be successful, and the construction period was reduced by about two weeks compared with conventional reinforcement. The comprehensive cost of using carbon fiber reinforcement technology is lower than that of bonding steel and planting reinforcement, saving 20% of reinforcement material costs and 15% of labor costs. Practice has proved that the carbon fiber cloth reinforcement technology is more effective than the traditional reinforcement technology in terms of project progress and economy, and the project quality can fully meet the needs.
