Revitalizes Aging Warehouse

A mid-sized logistics warehouse, crucial for regional distribution, had been in operation for over 20 years. Its concrete beams and columns, originally designed to handle moderate loads, were showing signs of strain as the business expanded, leading to heavier inventory and more frequent material handling. Visible cracks had appeared on some beams, and load tests indicated that several structural components were operating near their capacity limits.

After thorough research and consultation with structural engineering experts, the decision was made to use carbon fiber reinforcement for the warehouse's beams and columns. The carbon fiber sheets, known for their high strength-to-weight ratio, corrosion resistance, and ease of installation, were selected.

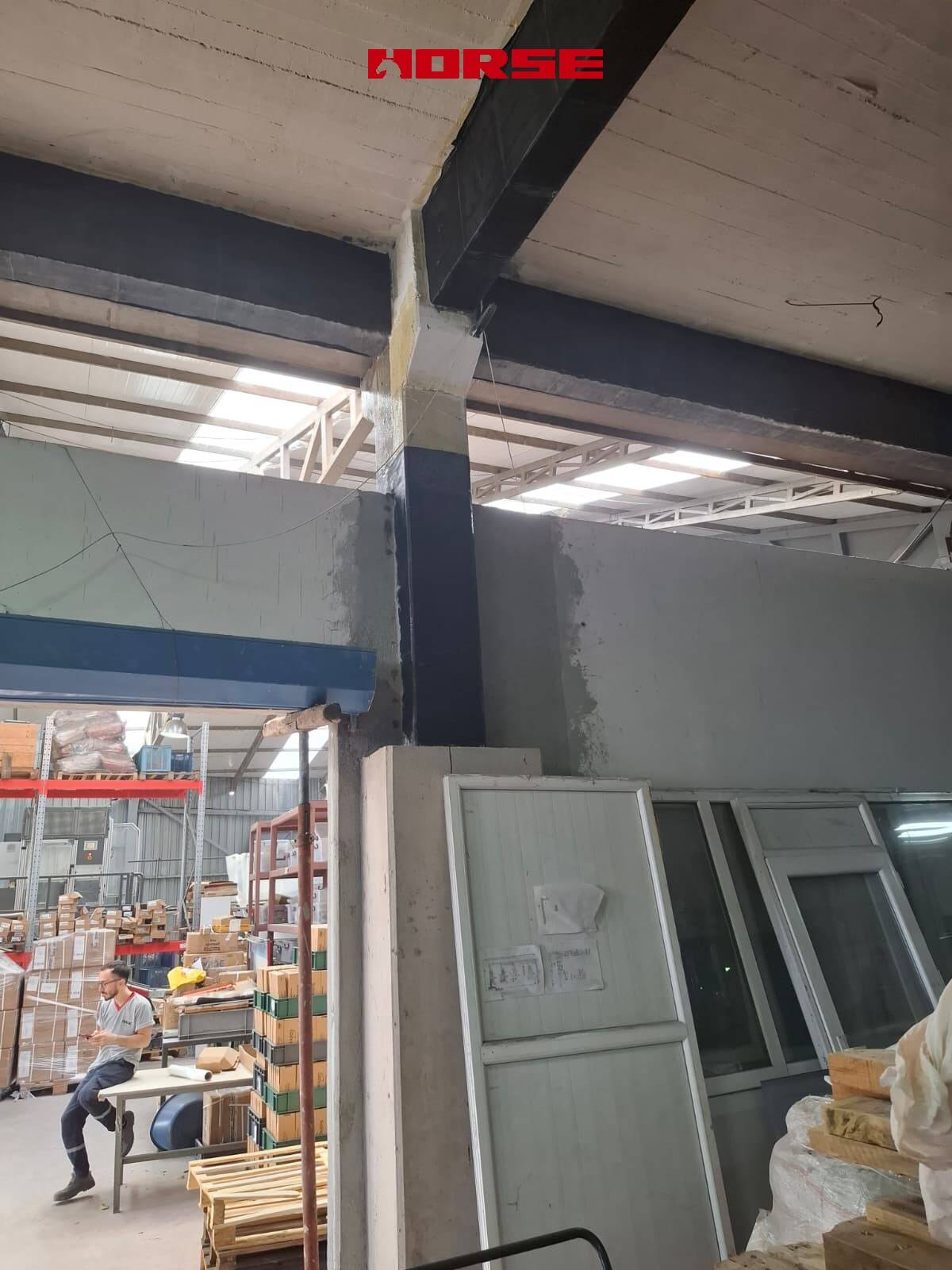

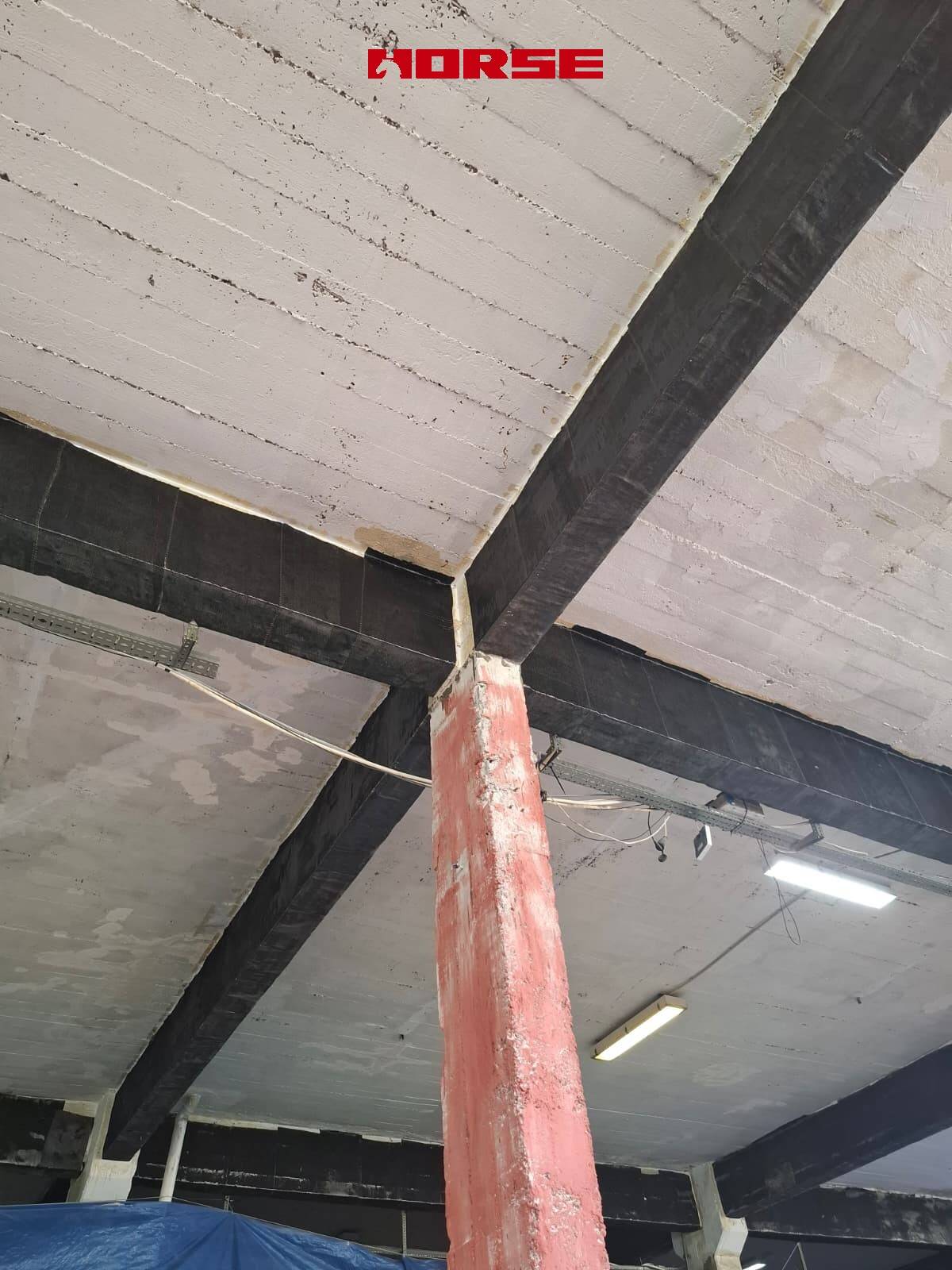

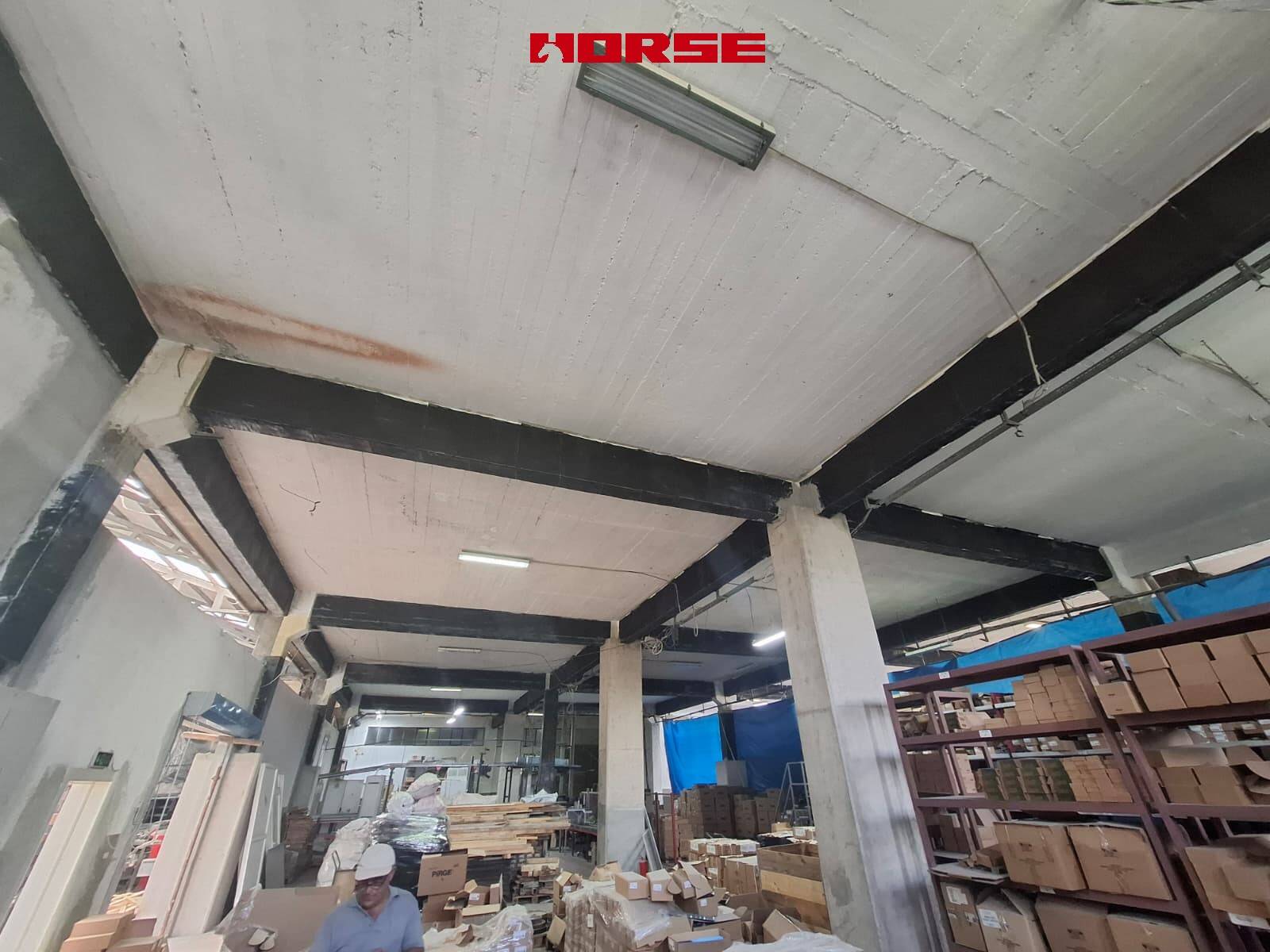

The installation process began with a detailed inspection and surface preparation of the concrete beams and columns. Any loose concrete was removed, and cracks were sealed. Then, a special adhesive was applied to the prepared surfaces, and the carbon fiber sheets were carefully bonded onto the beams and columns, ensuring full contact and proper alignment. The entire process was carried out with minimal disruption to the warehouse's daily operations, as the carbon fiber reinforcement work could be done during off-peak hours.

Post-reinforcement load tests demonstrated a significant increase in the load-bearing capacity of the beams and columns. The carbon fiber reinforcement effectively distributed the loads, reducing stress concentrations on the concrete structures. The visible cracks, which were potential safety hazards, were stabilized and prevented from further propagation.

Compared to traditional reinforcement methods, the carbon fiber solution drastically reduced downtime. The entire project was completed in just two weeks, with only brief interruptions to specific areas of the warehouse at a time. This meant the warehouse could continue to operate at a high level throughout the reinforcement process, avoiding significant losses in productivity.

The total cost of the carbon fiber reinforcement project was lower than the estimated cost of steel plate bonding and far less than the cost of demolishing and rebuilding parts of the warehouse. Additionally, the long-term maintenance costs are expected to be lower due to the corrosion resistance of carbon fiber, which eliminates the need for regular inspections and repairs associated with steel components.
