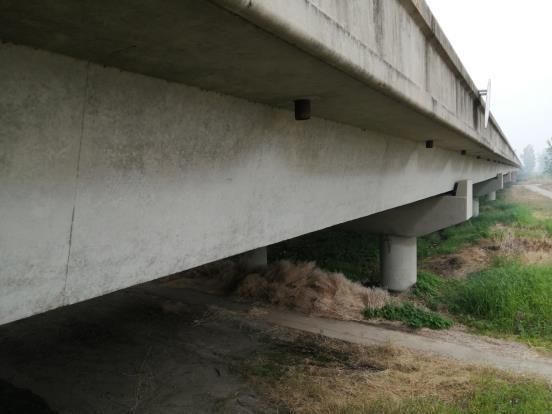

West Henghe Bridge

The Xihenghe Bridge is located on the Yanluo Expressway, with a total length of 1957.4m, a total width of 28.0m, and a span of 13 × (6 × 25) m

The problem with this bridge is that there are 24 vertical cracks with a width of 0.05-0.1mm and a total length of 21.04m

Design apartment decide to use prestressed carbon plates for reinforcement the bridge and limit the cracks and improve the strength.

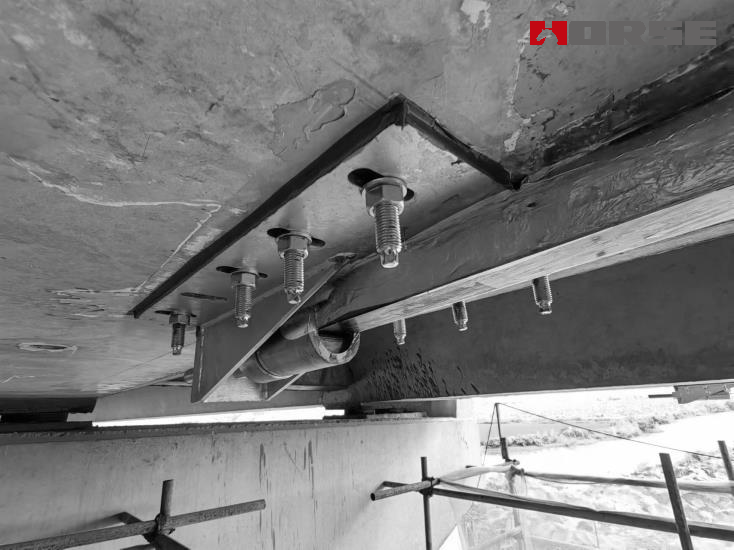

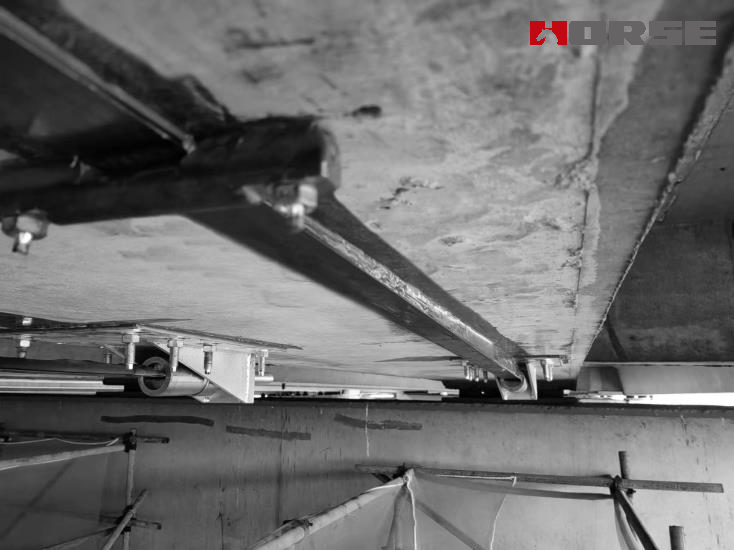

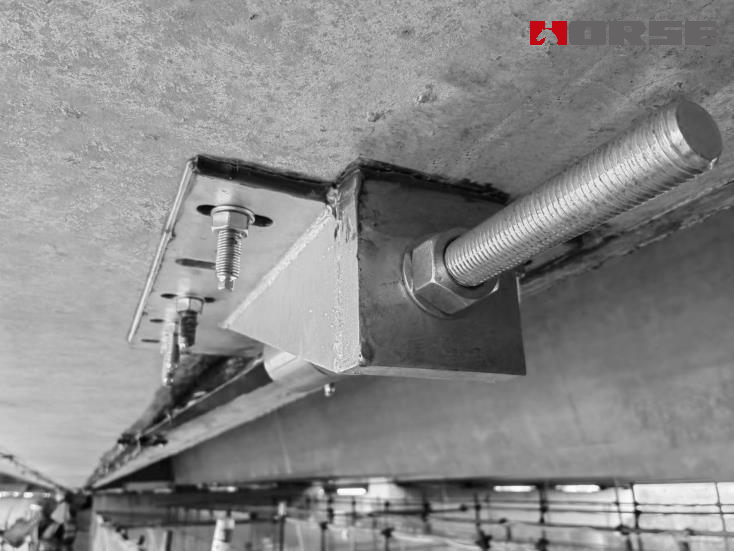

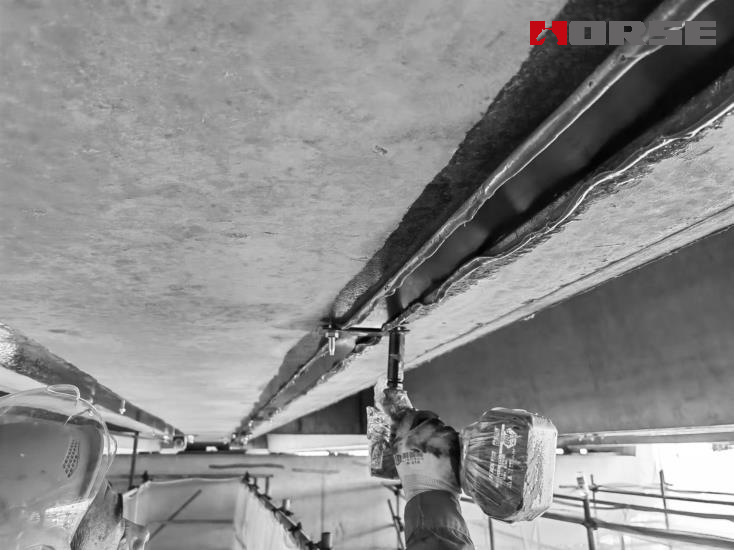

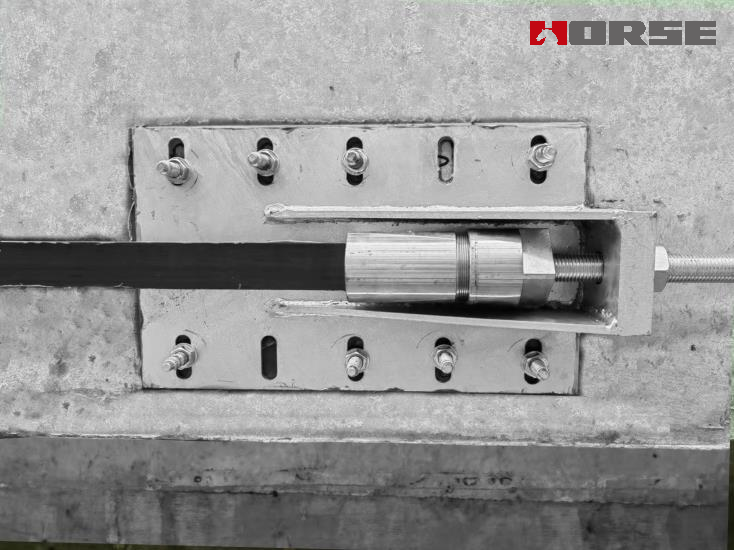

Strengthening with Circular Anchorage of Prestressed Carbon Plate
