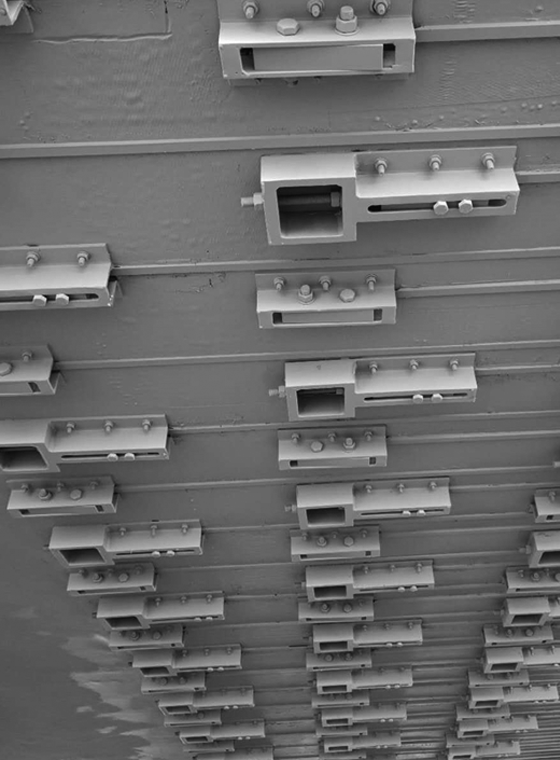

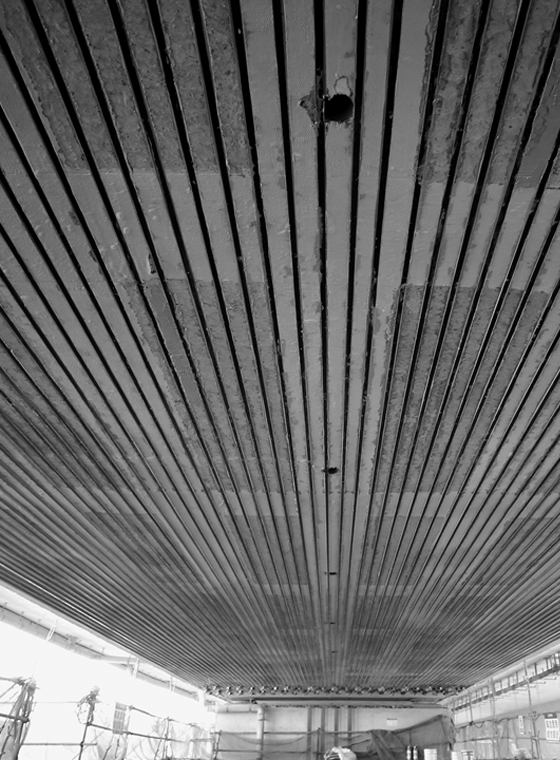

Pre-stressed Carbon Fiber Plate System To Compensate For The Stress Loss Of The Steel Strand

Solution: 2cm carbon fiber plate system. Avoid damage to the original components caused by excessive pulling force of a single system. 70 systems on a single span are staggered. The overall force is uniform to avoid sharp changes in stress. Occasionally, the failure of a single set has little effect on the whole.

In the 17 years since the bridge was opened to traffic, the bridge structure has undergone various harsh service environments. In particular, the vehicle tonnage has seriously exceeded the standard, and the large temperature difference between the day and night of the bridge has accelerated the overall aging of the bridge.

Solution:
2cm carbon fiber plate system. Avoid damage to the original components caused by excessive pulling force of a single system.

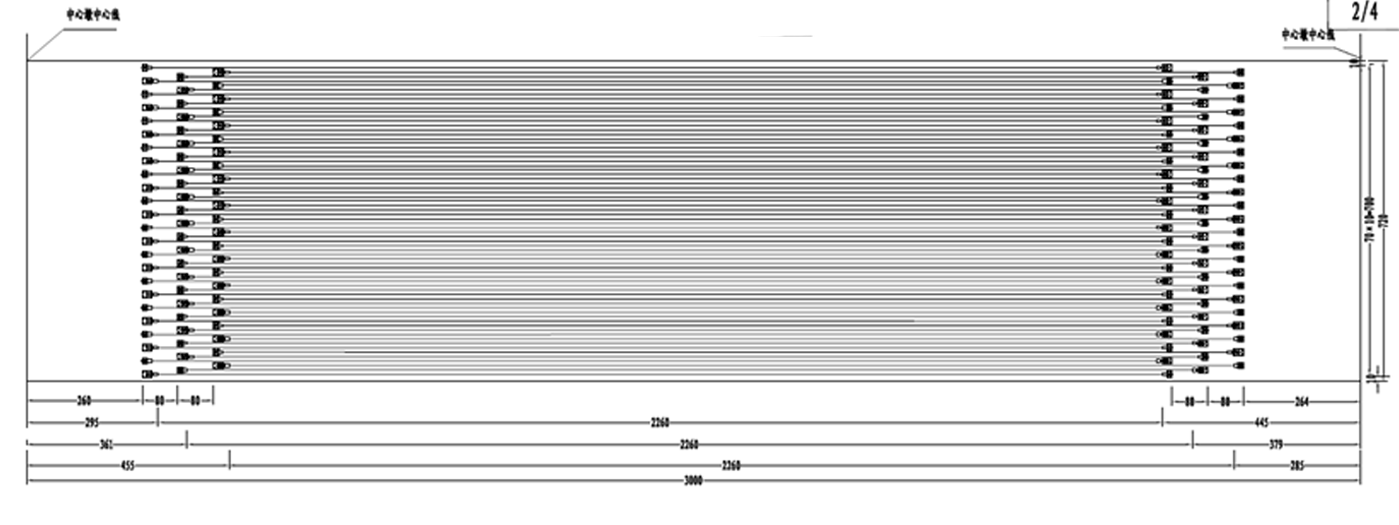

70 systems on a single span are staggered. The overall force is uniform to avoid sharp changes in stress. Occasionally, the failure of a single set has little effect on the whole.

Pre-stressed Carbon Fiber Plate System
