Concrete beams strengthening by CFRP composite strengthening system

Because of the need to add 2 layers on the basis of the original 3 layer structure, and the longer use time of the original structure, some structural beams are corroded, so the concrete beams strengthening by CFRP composite strengthening system

The project is for the North District Library of the University of micro technology. Because of the need to add 2 layers on the basis of the original 3 layer structure, and the longer use time of the original structure, some structural beams are corroded, which causes a little cracking of the concrete of the protective layer, but it does not affect the mechanical properties of the lower steel bars. The steel bar has no rust, spalling, and the stress section of reinforcement is not reduced. So CFRP composite strengthening system is for the situation.

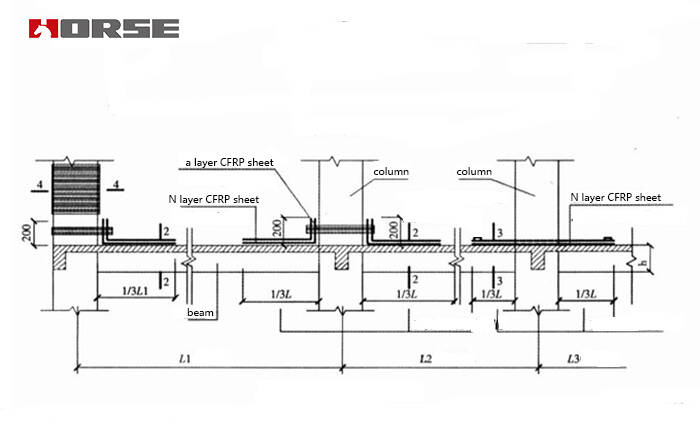

Concrete beams strengthening by CFRP composite strengthening system

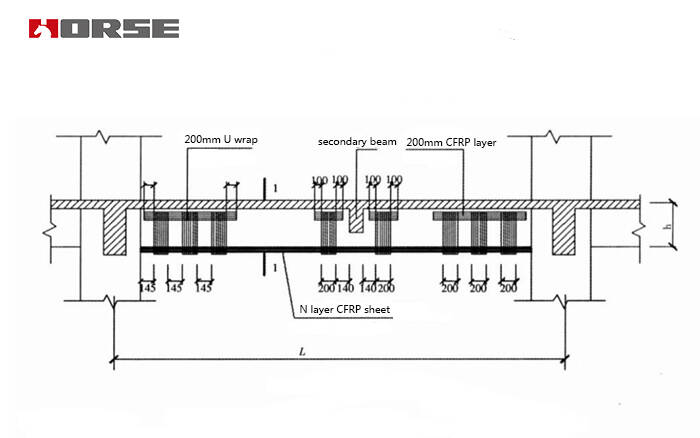

cfrp sheet for beam

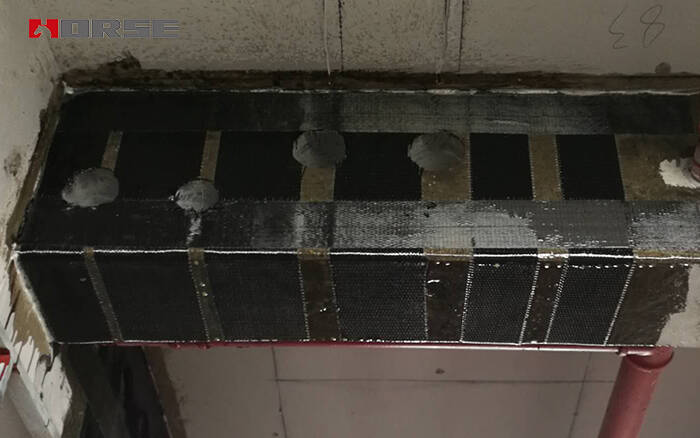

CFRP sheet for beam1
