The Beijing Shanghai high-speed Xinyi River Bridge maintenance and reinforcement

Structural strengthening materials:HM-120 steel plate bonding adhesive,HM-120M structural strengthening adhesive for steel jacketing,HM-500 injectableanchoring adhesive

Engineering survey

Xinyi River bridge built in May 1967, completed in June 1969, 1269.26 meters long bridge, a total width of 8.5 meters, the bridge deck is 7 meters, O.75 meters wide sidewalks on both sides, a total of 39 holes, each hole span of 30 meters, the height of the bridge is 7 meters on water, 10 meters underwater, the design load of 13 tons of cars, hang 60 tons.


Strengthening time

July 2014


Reinforcement method

Strengthening by bonding steel plate

Plant rebar


Structural strengthening materials

HM-120 steel plate bonding adhesive

HM-120M structural strengthening adhesive for steel jacketing

HM-500 injectableanchoring adhesive

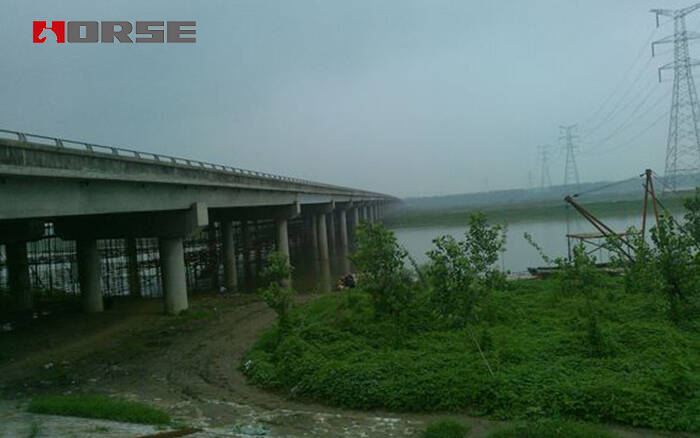

Xinyi bridge reinforcement with steel plate and anchoring rebar

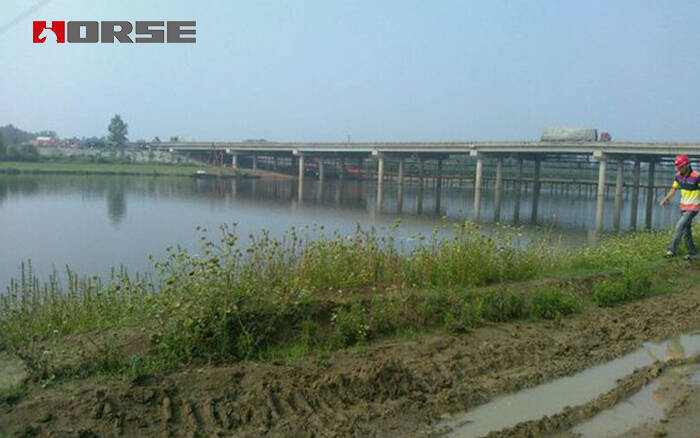

Xinyi bridge reinforcement with steel plate

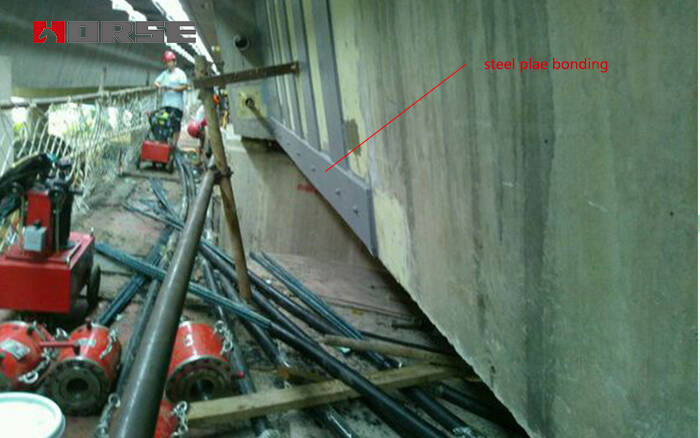

Xinyi bridge reinforcement with steel plate and anchoring rebar

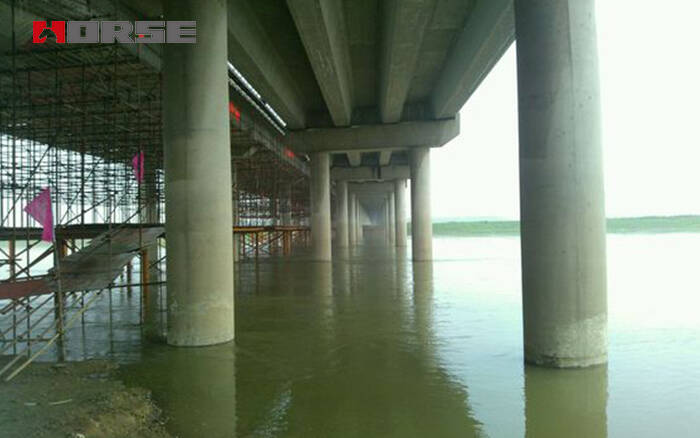

Xinyi bridge reinforcement with steel plate and anchoring rebar
