Project overview

1 project name, radiotherapy center of Gaoyou Hospital of traditional Chinese Medicine - accelerating machine room reconstruction project

2 project location in Gaoyou old hospital of traditional Chinese Medicine

3 Design Institute, Gaoyou Architectural Design Institute

4 Jiangsu Construction Engineering Project Management Consulting Co., Ltd.

5 general contractor Yangzhou Longhai construction and Installation Engineering Co., Ltd.

6 construction building number acceleration machine room

7 structure frame structure

Construction scheme

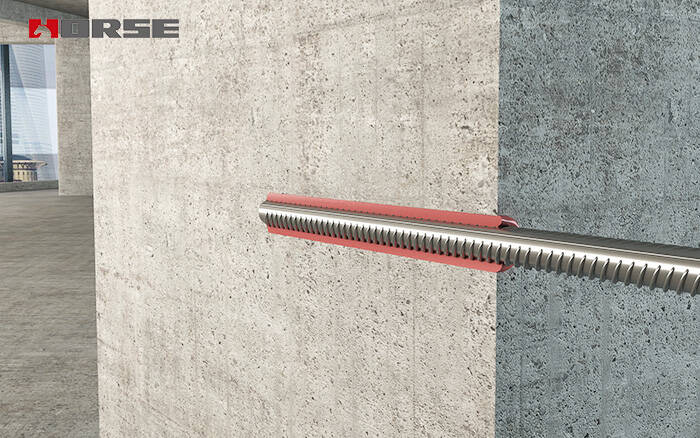

Steel rebar planting

Construction preparation

Anchorage construction before the start should be reinforced in the field pull-out test of the original structure, the bonding properties of structural adhesive anchorage detection rationality and technology, test position by the supervision or general contractor, party a specified test is generally used in the main specifications of steel bar each do a group, a group of three. The reinforcement of the steel bar is made by our company according to the requirements of the construction technology. After planting the reinforcement, the qualified test unit is used to do the drawing test.

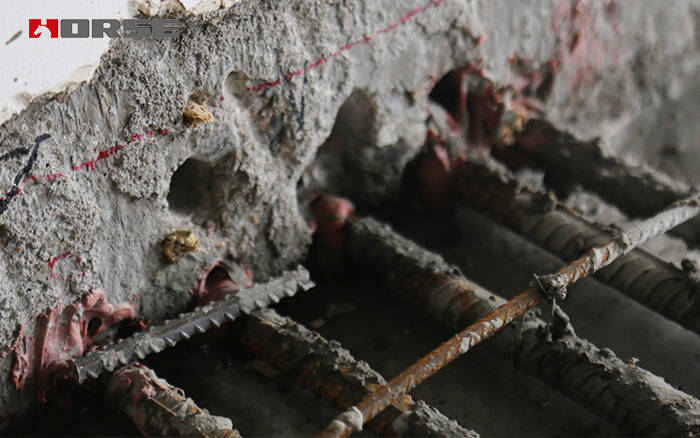

The qualification standard for pullout test is: when pull-out test results conform to the following conditions, it is qualified; the drawing force has reached the design requirement (or has reached the yield value of steel bars), and the reinforcement has not been pulled out. The reinforcement is pulled out, but the form of the damage is that the concrete is destroyed and not the structural adhesive is destroyed.

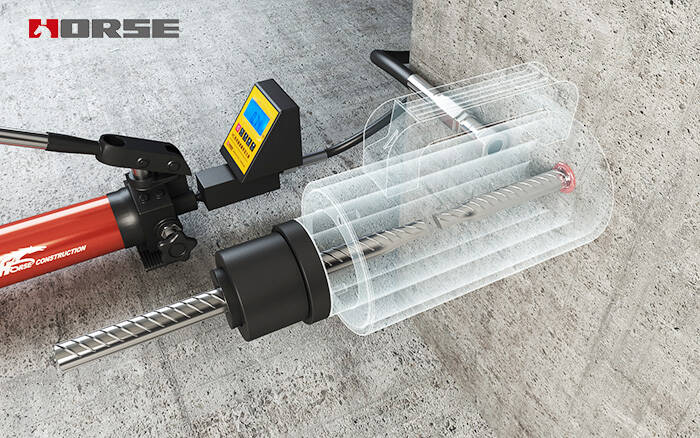

Detailed diagram of the test process

Strengthening material requirements

HM-500 epxoy anchoring adheisve
