Structural strengthening of old apartment by steel plate and CFRP

The main reinforcement methods are add new beam, externally bonded steel plate and carbon fiber reinfroced polymer(CFRP) wrap.

Project overview

The project is structural strengthening project for the elderly apartment. The project includes the 1# building, the 2# building, the 3# building elevator shaft reconstruction, the removal and reinforcement of the new ventilation passages in the 3# building, the 1# building, the 2# building, and the 3# building with carbon fiber reinforcement, 1# building, 2# building, 3# building, the two floors, the three floors and the top local beams and the slab pasting carbon fiber fabric. Strengthening of the 1# building, 2# building and 3# building window. The main reinforcement methods are add new beam, externally bonded steel plate and carbon fiber reinfroced polymer(CFRP) wrap.

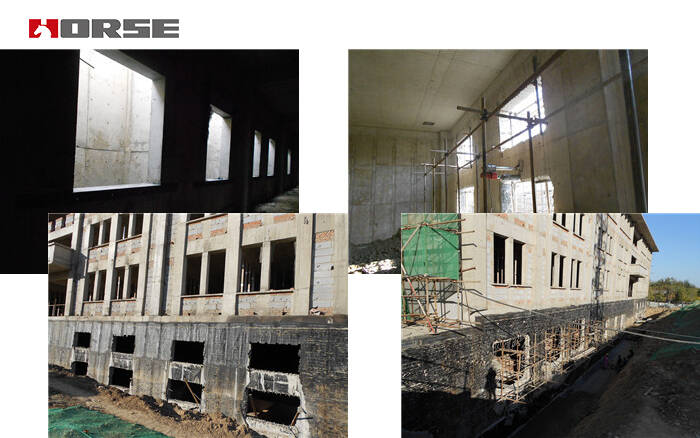

wall opening structural strengthening

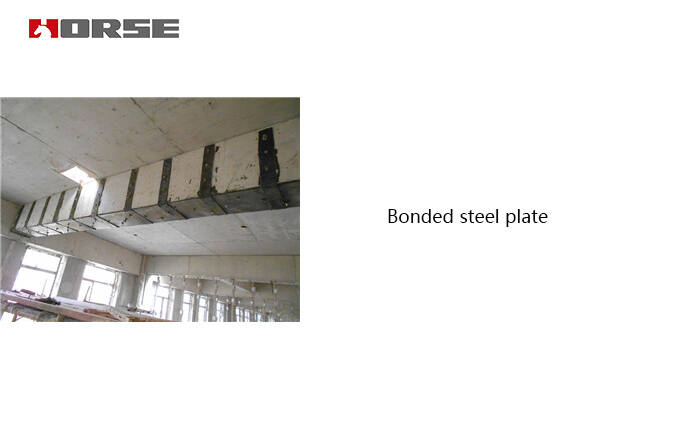

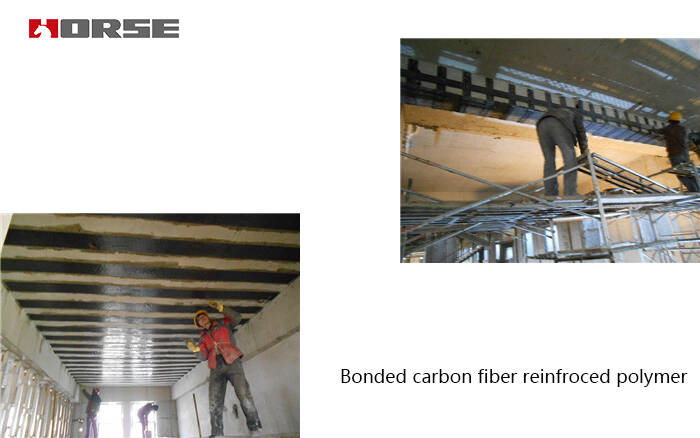

Bonded steel plate carbon fiber reinfroced polymer(CFRP) wrap.
